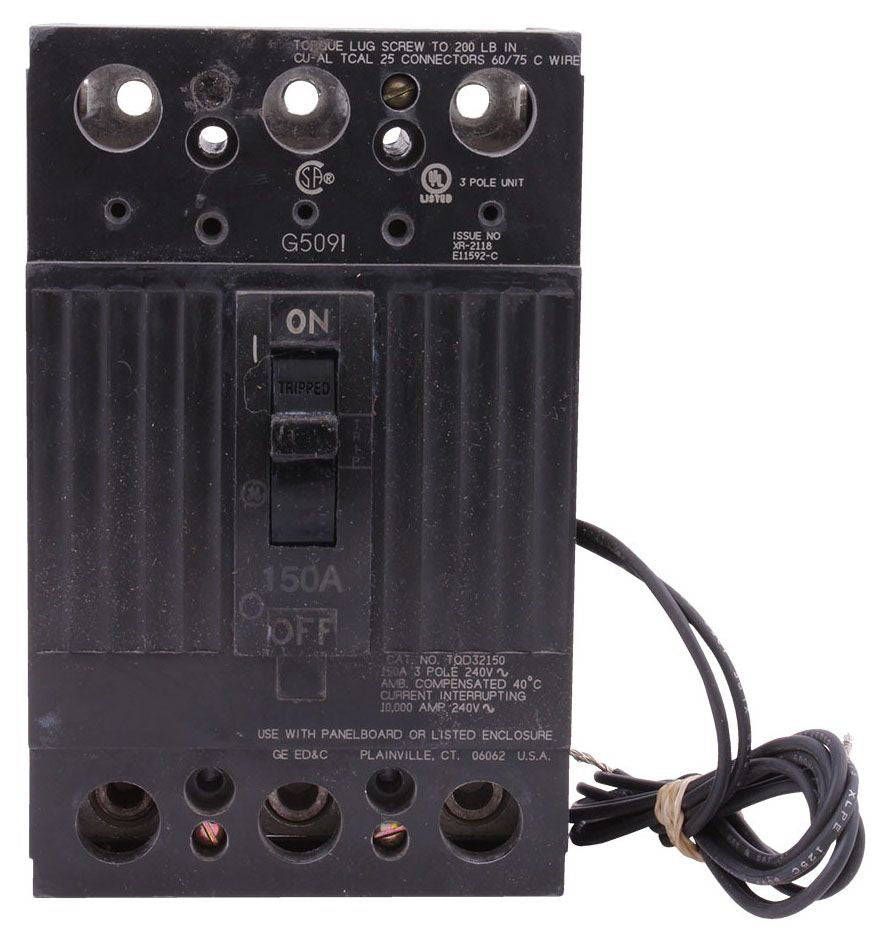

The TQD Line of Devices Include Thermal Magnetic Molded Case Circuit Breakers and Molded Case Switches; The Devices are Complete with Cu/Al Line and Load Lugs

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Poles: 3
Voltage Rating: 240 VAC
Current Rating: 150 Ampere
Interrupting Rating: 10 Kiloampere
Terminal Type: Line and Load Lug
Application: Heating, Air Conditioning and Refrigeration
Construction Feature: 120 VAC Shunt Trip, Common Trip
Mounting: Cable In, Cable Out
Used On: AL/AQ/ALC/AQC/Spectra Series Panelboard
Size: 4-1/8 Inch W x 2-5/8 Inch D x 6-9/16 Inch H
Approval: UL
