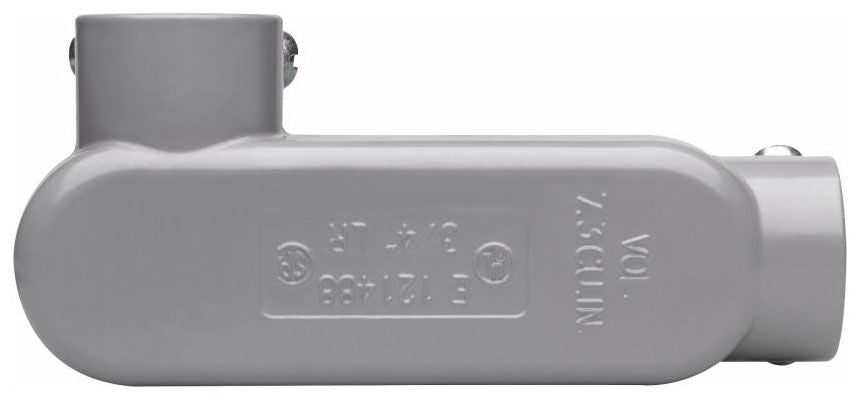

Crouse-Hinds LR35-CGN IMC/Rigid Conduit Outlet Body

Eaton's Crouse-Hinds Division Series 5 die cast copper-free aluminum conduit bodies, covers and gaskets are available for use with rigid or EMT conduit (with set screw). Conduit bodies are available in trade sizes 1/2" to 4", in the most popular conduit body shapes (C, LB, LL, LR, T) and 1/2" to 2" in TB and X shapes. The Series 5 family is available as components or pre-packaged in various configurations as a SnapPack assembly. In addition, Series 5 is completely interchangeable with other manufacturers.

Specifications:

Access Opening: Right Side
Configuration: LR
Cover Type: Natural Finished Aluminum, Screw-On
Hub Location: 90 Deg
Number of Hubs: 2
Hub Size: 1 Inch
Size: 5.95 Inch L x 1.74 Inch W x 2.68 Inch H
Installation: Set Screw, Threaded
Material: Epoxy Powder Painted Die-Cast Copper Free Aluminum (Body), Natural Finished Neoprene (Gasket), Stainless Steel (Screw)
Approval: UL, CUL
Used On: IMC/Rigid Conduit
