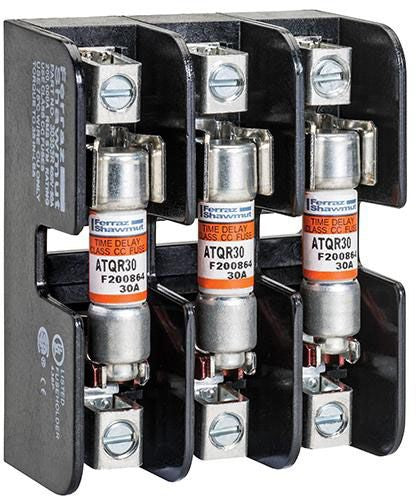

Mersen EP 30353R Fuse Block

Out of stock
SKU: 87110
Regular price $60.60

Midget Fuse Blocks Accommodate All 30 Amp 1-1/2 Inch X 13/32 Inch Midget Fuse; A Choice of Box, Screw or Pressure Plate Connectors Fit a Wide Range of Stranded or Solid Copper Wire; Insulators are Glass Filled Polycarbonate (Gap) with Verified Dielectric Strength in Excess of 2500 Volt; Fuse Blocks Feature a Unique Adder Block Which Can be Snapped Onto 1, 2 or 3-Pole Blocks to Form Multi-Pole Segmented Blocks of as Many Poles as Desired; RoHS Compliant


Type: Standard
Body Material: Glass Filled Polycarbonate
Number of Poles: 3
Fuse Type: Class CC
Fuse Voltage Rating: 600 VAC
Fuse Current Rating: 30 Ampere
Wire Size: 14 to 6 AWG (Copper)
Terminal Type: Box Lug
Clip Type: Tin Plated Copper Alloy
Approval: UL 4248, CSA 6225
