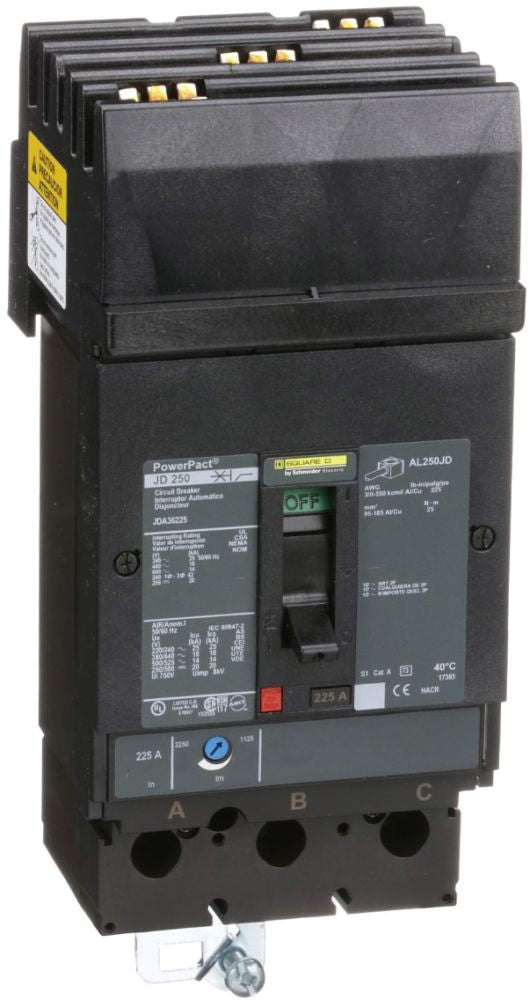

A flexible, high-performance offer, certified to global standards for ratings from 15 to 150A The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only.

Specifications:

Type: Molded Case, Thermal Magnetic, Main
Voltage Rating: 600 Volt AC at 50/60 Hertz, 250 Volt DC
Current Rating: 225 Amp
Number of Poles: 3
Interrupting Rating: 25 Kiloamp at 240 Volt AC, 18 Kiloamp at 480 Volt AC, 14 Kiloamp at 600 Volt AC
Trip Setting: 1125 Amp Hold, 2250 Amp Trip
Installation: Plug-In
Used On: I-Line Panelboard
Approval: UL, CSA, IEC
