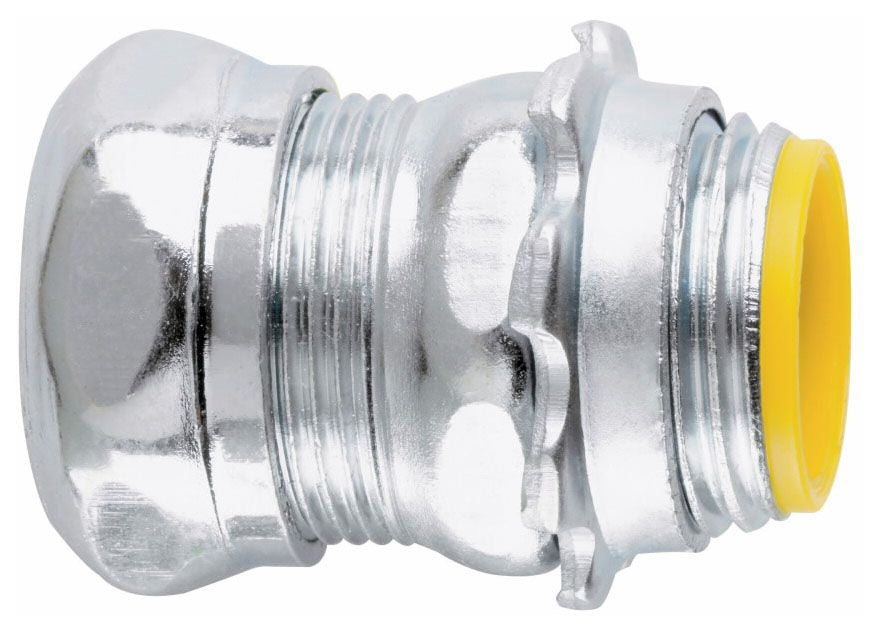

Crouse-Hinds 1656 EMT Connector

Crouse-Hinds series EMT connectors and couplings are used to join EMT conduit to a box or enclosure, or to couple two ends of EMT conduit. Our EMT fittings are available in set screw type and compression type, in both insulated and non-insulated versions. They are available in steel and zinc die cast.Crouse-Hinds series EMT connectors and couplings are also available painted in seven different colors to better match architectural specifications and preferences

Specifications:

Type: Straight, Compression, Thin Wall, Threadless
Throat Type: Insulated
Trade Size: 2-1/2 Inch
Diameter: 3.33 Inch
Length: 3.88 Inch
Thread Length: 0.84 Inch
Material: Zinc Plated Steel
Constructional Feature: Concrete-Tight
Standard Package: 2
Approval: UL, CUL
Used On: EMT Conduit
