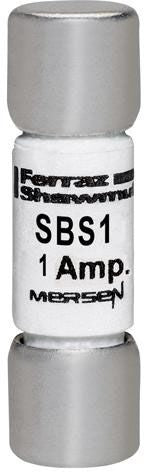

Unique dimensions for today's smaller equipment and components. Fast-acting general purpose fuse developed in response to the industry's demand for smaller equipment and components. The only fuse in their size with a full 600 VAC rating for all ampere ratings by UL standard 248-14 and CSA No . 59 .2 and are the only fuses of this size with an interrupting rating of 100kA RMS. SBS fuses are 1-3/8" long, smaller by 1/8" than most standard midget fuses and are available in 22 ampere ratings, from 2/10A to 30A.

Specifications:

Characteristics: Fast Acting
Voltage Rating: 600 Volt AC
Current Rating: 1 Amp
Interrupting Rating: 100 Kiloamp (AC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.38 Inch
Approval: UL 248-14, CSA C22.2
