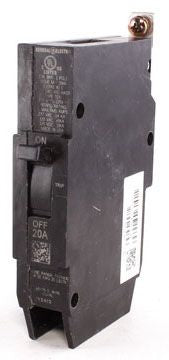

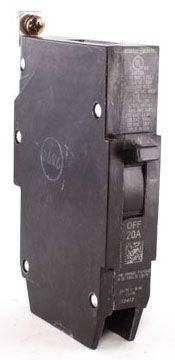

The Tey is a One-Inch Wide Per Pole, Compact, "Bolt-On" Circuit Breaker; For Use on Grounded 480Y/277 Vac Systems; The Bolt-On Mounting Base Accessory Makes the Tey Suitable for Varied Applications as a Lug-Lug Breaker; All Tey Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: TEY
Voltage Rating: 277 Volt AC
Maximum AC Voltage Rating: 277 Volt
Maximum DC Voltage Rating: 125 Volt
Current Rating: 20 Amp
Number of Poles: 1
Interrupting Rating: 65 Kiloamp at 120 Volt AC, 14 Kiloamp at 240/277 Volt AC, 10 Kiloamp at 125 Volt DC
Terminal Type: Copper/Aluminum Load Lug, Bolt-On
Size: 1 Inch Width x 3-1/16 Inch Depth x 5-1/4 Inch Height
Approval: UL, CUL
