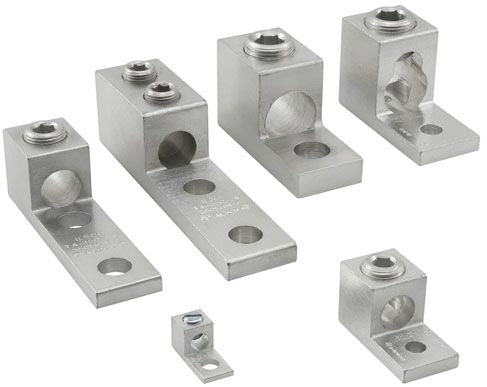

Ilsco TA-600-2NS Mechanical Lug
Regular price
$0.18
Couldn't load pickup availability
Provides Low Contact Resistance; Provides Ease of Installation; Application Versatility; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant
Specifications:
Type: Chamfered Wire Entry
Number of Conductors: 1
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 1/2 Inch Hex
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 2
Pad Size: 3-5/16 Inch L x 1-1/2 Inch W x 7/16 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4-11/16 Inch
Approval: UL 453G, UL 486A/B, CSA
