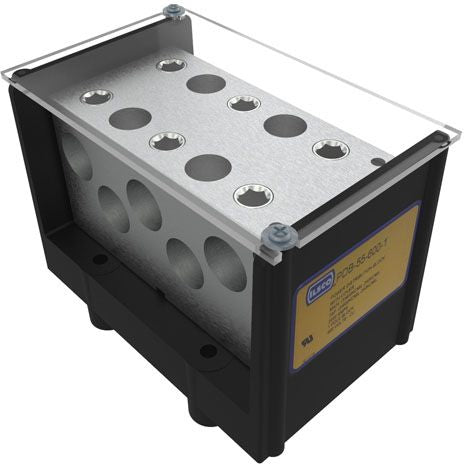

Ilsco PDB-55-600-1 Power Distribution Block

Valox Insulating Base; Reliable Use for Copper Conductor Only; Provides a High Degree of Impact Resistance with Superior Insulating Qualities; Ensures Reliability; Provides Low Contact Resistance; Provides Visual Inspection; RoHS Compliant

Specifications:

Type: Standard
Voltage Rating: 600 Volt
Current Rating: 2000 Amp
Number of Poles: 1
Number of Primary Openings per Pole: 5
Primary Opening Wire Size: 250 to 600 KCMIL
Number of Secondary Openings per Pole: 5
Secondary Opening Wire Size: 250 to 600 KCMIL
Conductor Material: Copper
Size: 6.324 Inch Length x 4.69 Inch Height
Temperature Rating: 90 Deg C
Connector Material: Electro Tin Plated Aluminum
Housing Material: Valox
Approval: UL 486A/B/1059
