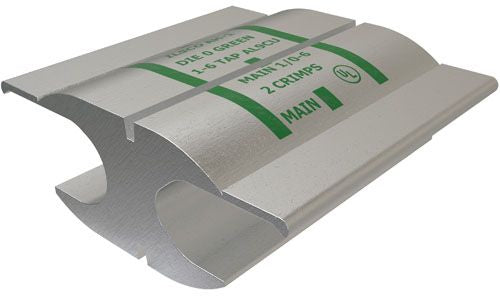

Ilsco AH-1 Compression Tap Connector

Prefilled with Oxide Inhibitor Provides Corrosion Resistance; Color Coded Provides Visual Recommendation for ILSCO or Standard Industry Tools; Manufactured from High Strength Aluminum Alloy Provides Maximum Conductivity and Excellent Crimping Characteristics; Ensures Reliability for Copper or Aluminum Conductors; Application Versatility; RoHS Compliant

Specifications:

Voltage Rating: 600 V
Shape: H
Conductor Material: Aluminum/Copper
Minimum Run Conductor Size: 6 AWG Stranded
Maximum Run Conductor Size: 1/0 AWG Stranded
Minimum Tap Conductor Size: 6 AWG Stranded
Maximum Tap Conductor Size: 1 AWG Stranded
Die Index: O
Body Material: High Strength Aluminum Alloy, Oxide Inhibitor
Approval: UL 453G, UL 486A/B
