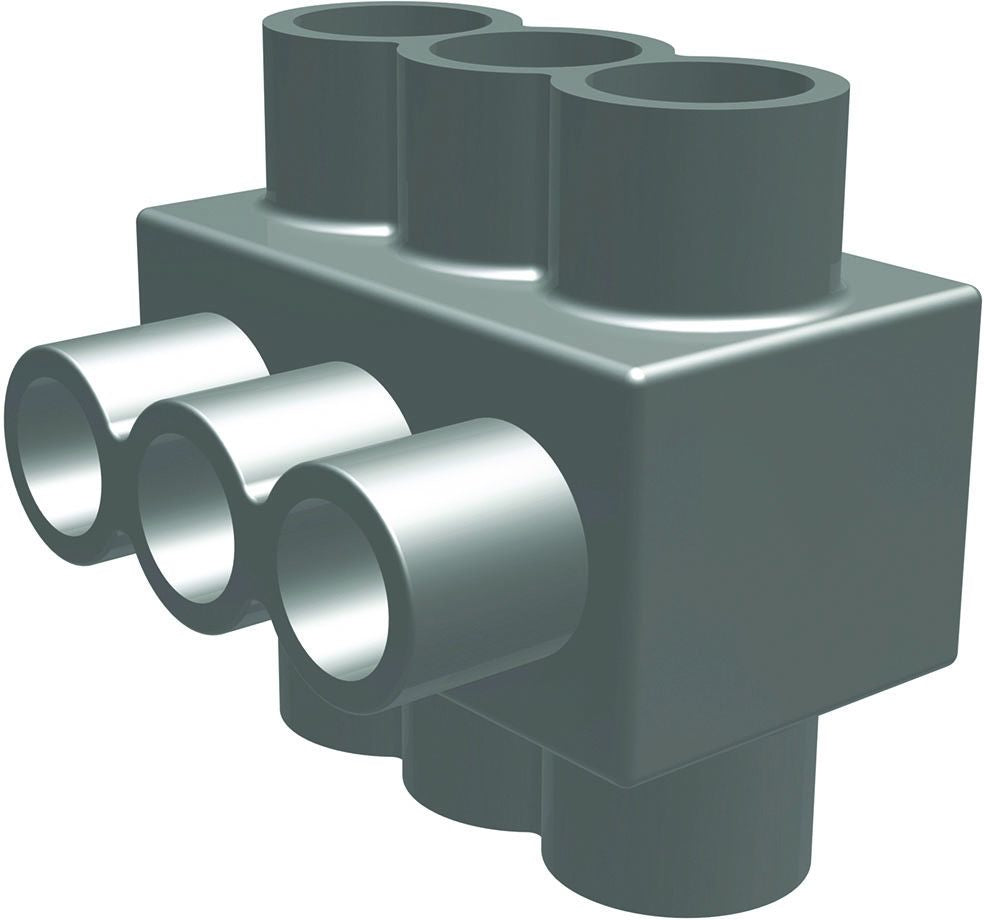

Tap connections are made quickly and easily with the UNITAP line of connectors. UL486A-B Listed. Dual-rated for any stranded copper or stranded aluminum applications. UL Listed 600 Volts, -40° C to 135° C Operating Temperature.

Specifications:

Voltage Rating: 600 V
Number of Ports: 6
Cable Entry: 2 Side Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Maximum Conductor Size: 750 KCMIL (Aluminum), 750 KCMIL Stranded (Copper)
Body Material: UV Black Plastisol Covered Aluminum
