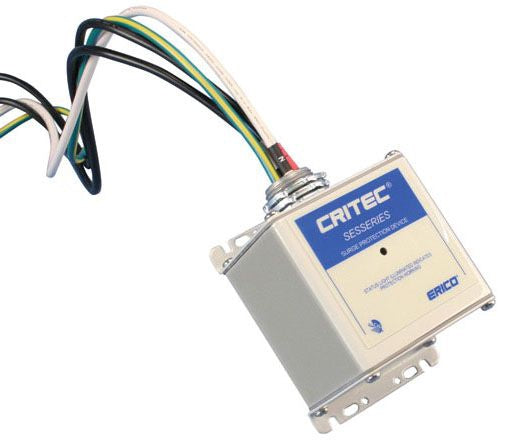

Erico SES40120/240 Service Entrance Suppressor

LED Status Indication Flag for Status Monitoring; Enclosure Design Can be Flush Mounted or Installed in a Small Space

Specifications:

Type: Compact
Voltage Rating: 120/240 V
Frequency Rating: 50/60 Hz
Circuit Configuration: 1-Phase 3-Wire with Ground
Surge Current per Phase: 40 Kiloampere
Modes of Protection: L-G
Response Time: 8/20 Microsecond
Connection Type: 30 Inch 10 AWG Flying Lead Wire (Line), 36 Inch 10 AWG Flying Lead Wire (Neutral/Ground)
Operating Temperature: -40 to 80 Deg C
Enclosure: NEMA 4, IP65

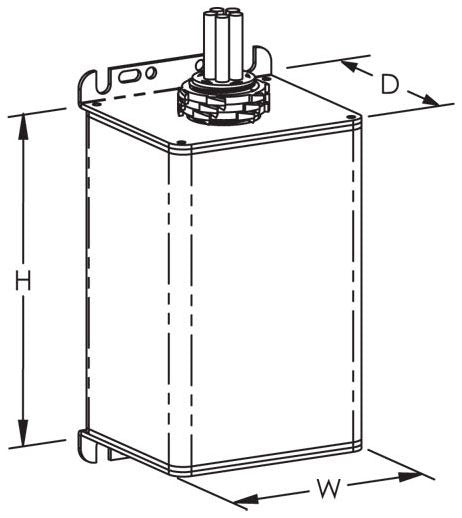

Size: 3.27 Inch W x 2.87 Inch D x 3.27 Inch H
Mounting: 3/4 Inch Straight Nipple
Application: Power Distribution System, Commercial, Residential
Approval: UL 1449, CE, NOM

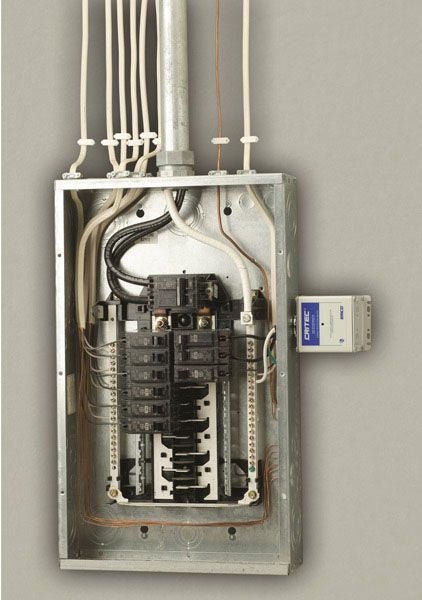

Used On: Service Entrance, Distribution Panel
