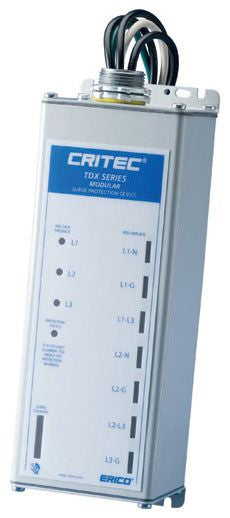

Erico TDX100S277/480 Transient Discriminating Panel Protector

Transient Discriminating Technology Provides Increased Service Life; Built-In Features Include Transient Discriminating Technology, Thermal Protection and Short Circuit Current Fusing; LED Status Indication and Voltage-Free Contacts Provide Remote Status Monitoring

Specifications:

Type: Modular
Voltage Rating: 277/480 V
Frequency Rating: 50/60 Hz

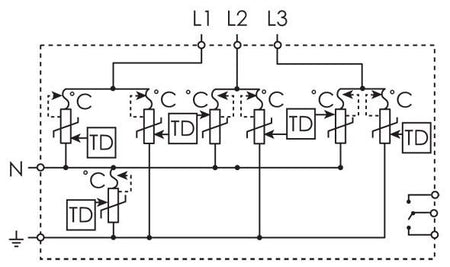

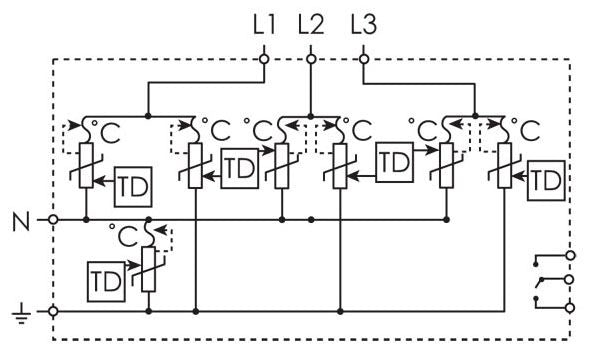

Circuit Configuration: 3-Phase 4-Wire with Ground
Surge Current per Phase: 100 Kiloampere
Modes of Protection: L-N, L-G, N-G
Response Time: 8/20 Microsecond
Noise Attenuation: -41 dB at 100 KHz
Connection Type: 30 Inch 10 AWG Flying Lead Wire (Line), 36 Inch 10 AWG Flying Lead Wire (Neutral/Ground)
Operating Temperature: -40 to 80 Deg C
Enclosure: NEMA 4, IP65

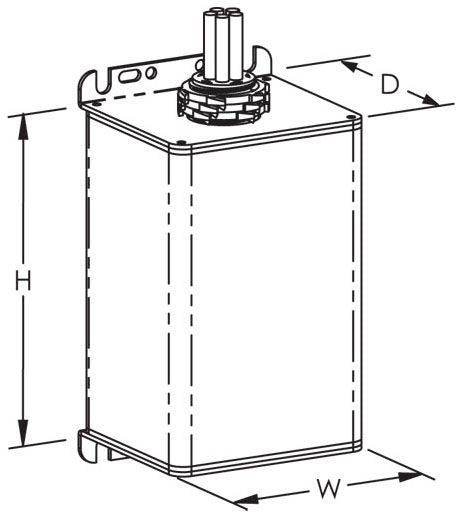

Size: 3.31 Inch W x 3.07 Inch D x 9.45 Inch H
Mounting: 3/4 Inch Straight Nipple
Application: Power Distribution System
Approval: UL 1449, CE

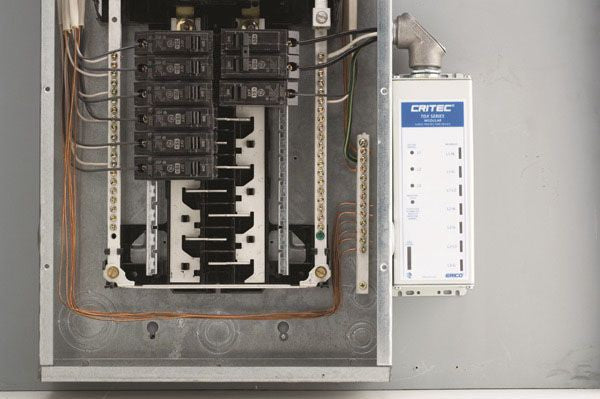

Used On: Service Entrance, Main Distribution Panel, Indoor/Outdoor Service Panel
