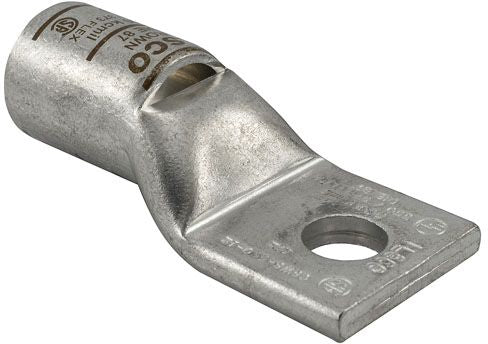

Ilsco CSWS-250-38 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 250 KCMIL
Barrel Type: Standard
Barrel Length: 1.063 Inch
Pad Size: 0.875 Inch L x 1.088 Inch W x 0.157 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Yellow
Die Index: I-62
Material: Seamless Electro-Tin Plated Copper
Overall Length: 2.469 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
