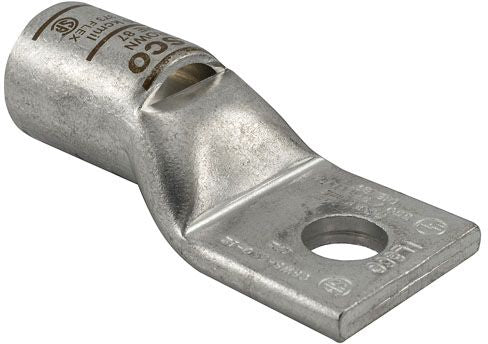

Ilsco CSWS-3-516 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 3 AWG
Barrel Type: Standard
Barrel Length: 0.625 Inch
Pad Size: 0.875 Inch L x 0.532 Inch W x 0.1 Inch Thk
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: White
Die Index: I-29
Material: Seamless Electro-Tin Plated Copper
Overall Length: 1.755 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
