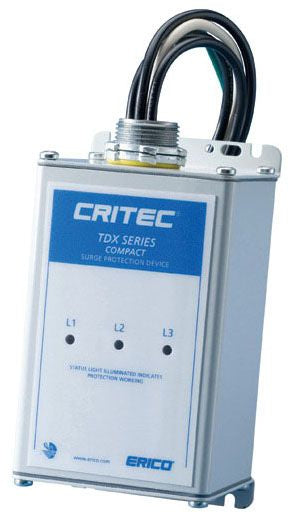

Erico TDX50C120/208 Transient Discriminating Panel Protector

Transient Discriminating Technology Provides Increased Service Life; Built-In Features Include Transient Discriminating Technology, Thermal Protection and Short Circuit Current Fusing; LED Status Indication and Voltage-Free Contacts Provide Remote Status Monitoring

Specifications:

Type: Compact
Voltage Rating: 120/208 V
Frequency Rating: 50/60 Hz
Circuit Configuration: 3-Phase 4-Wire with Ground
Surge Current per Phase: 50 Kiloampere
Modes of Protection: L-N, L-G, N-G
Response Time: 8/20 Microsecond
Connection Type: 30 Inch 10 AWG Flying Lead Wire (Line), 36 Inch 10 AWG Flying Lead Wire (Neutral/Ground)
Operating Temperature: -40 to 80 Deg C
Enclosure: NEMA 4, IP65

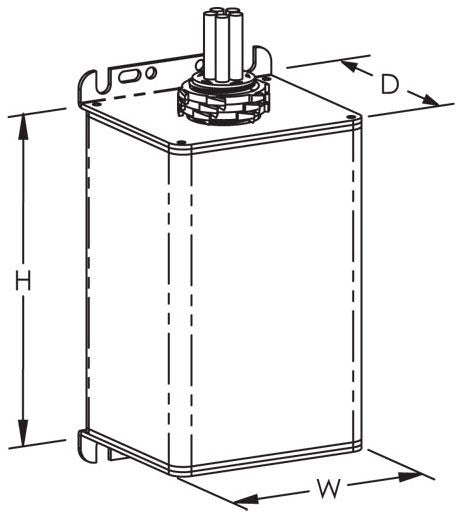

Size: 3.31 Inch W x 3.07 Inch D x 6.02 Inch H
Mounting: 3/4 Inch Straight Nipple
Application: Power Distribution System
Approval: UL 1449, CE

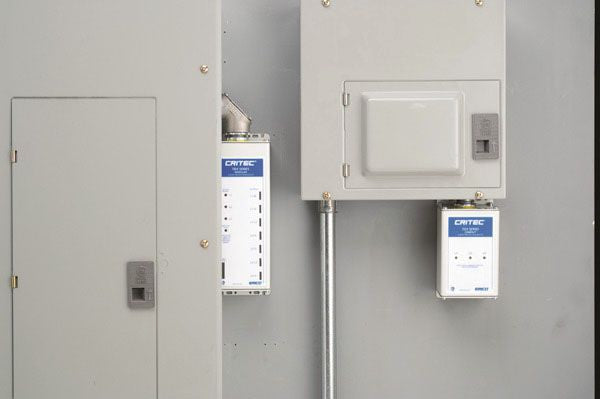

Used On: Sub Distribution Panel, Indoor/Outdoor Service Panel
