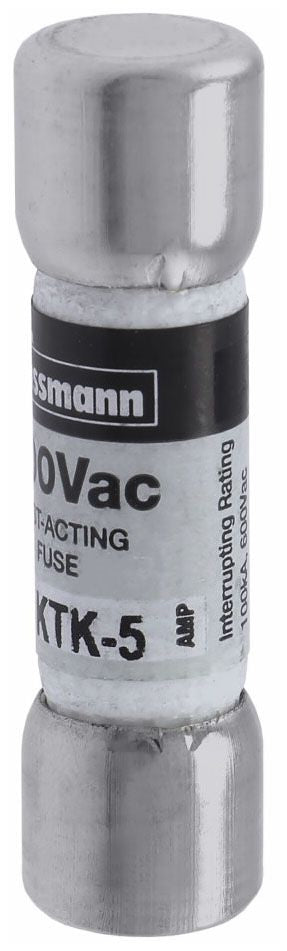

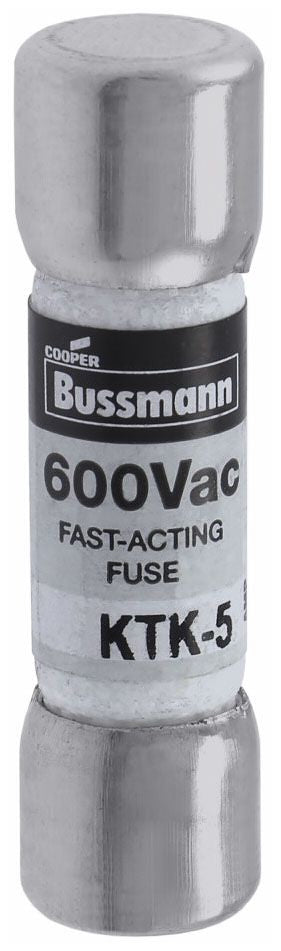

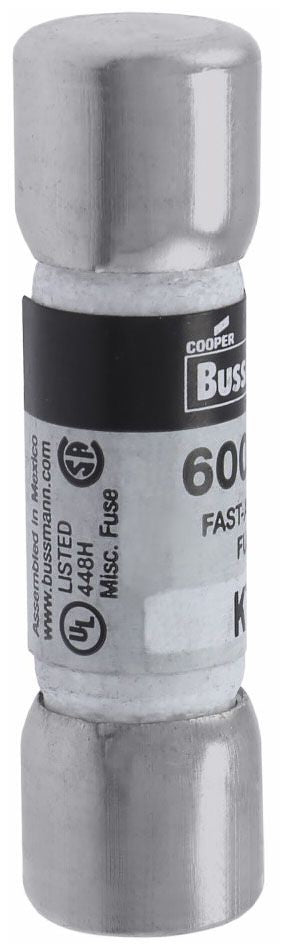

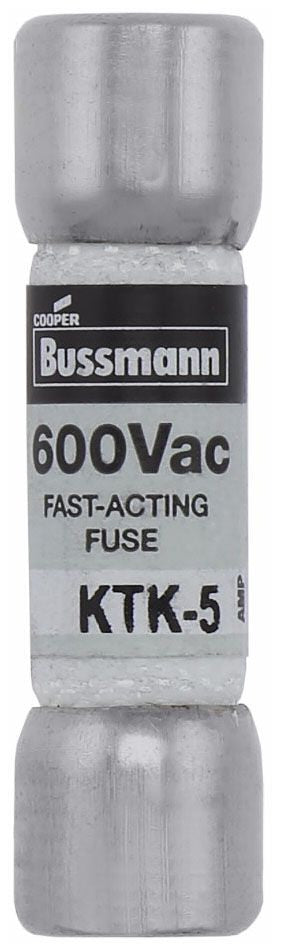

Bussmann KTK-5 Midget Fuse

Out of stock
SKU: 91804
Regular price $21.05

Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.


Characteristics: Fast Acting
Voltage Rating: 600 Volt AC
Current Rating: 5 Amp
Interrupting Rating: 100 Kiloamp
Terminal Type: Ferrule
Diameter: 13/32 Inch
Length: 1-1/2 Inch
Approval: UL 248-14, CSA C22.2, CE
