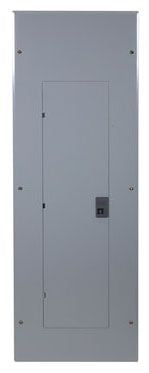

ABB GE Industrial Solutions TM4222CCU Load Center

Out of stock
SKU: 91890
Regular price $456.37
OR

PowerMark Gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

Specifications:

Type: Main Breaker
Voltage Rating: 120/240 Volt AC
Current Rating: 225 Amp
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 42
Maximum Number of Spaces: (42) 1-Pole 1 Inch THQL/(20) 2-Pole 1 Inch THQL

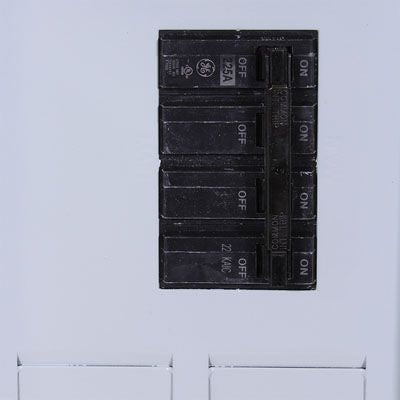

Main Breaker Type: THQL
Breaker Mounting: Plug-In
Interrupting Rating: 22 Kiloamp
Neutral Type: Split
Bus Material: Tin Plated Copper
Feed Location: Top/Bottom
Main Wire Size: 1 AWG to 300 KCMIL (Copper), 2/0 AWG to 300 KCMIL (Aluminum)
Enclosure Type: NEMA 1, Indoor
Cover Type: Flush/Surface
Enclosure Size Designation: 14
Size: 14 Inch Width x 3-3/4 Inch Depth x 43-7/16 Inch Height
Approval: UL
