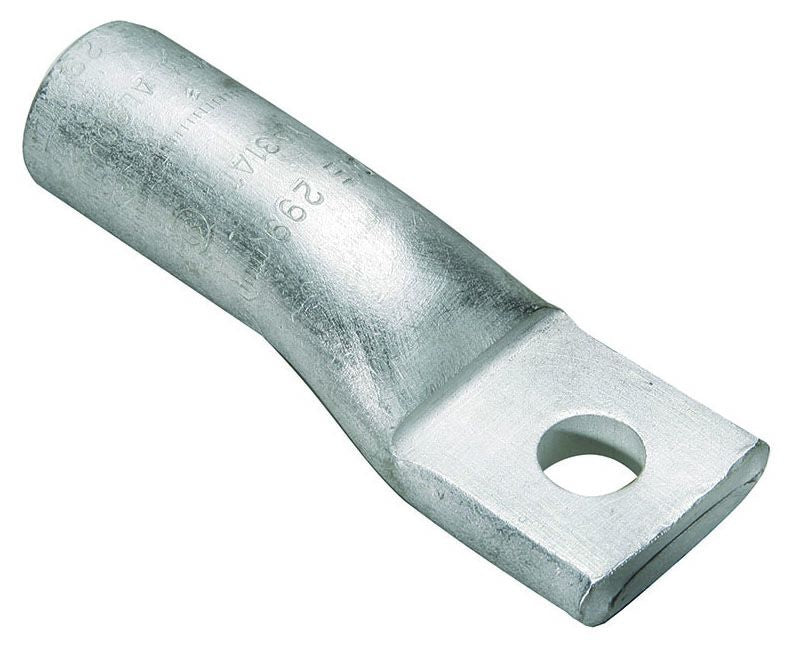

Burndy YA2CA1 Compression Terminal
Regular price
$7.43
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Barrel Type: Closed, Straight, Non-Insulated
Barrel Length: 1.12 Inch
Pad Size: 0.88 Inch Length x 0.88 Inch Width x 0.16 Inch Thickness
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Pink
Die Index: 348
Material: Electro Tin Plated Aluminum
Overall Length: 2.5 Inch
Approval: UL, CSA
