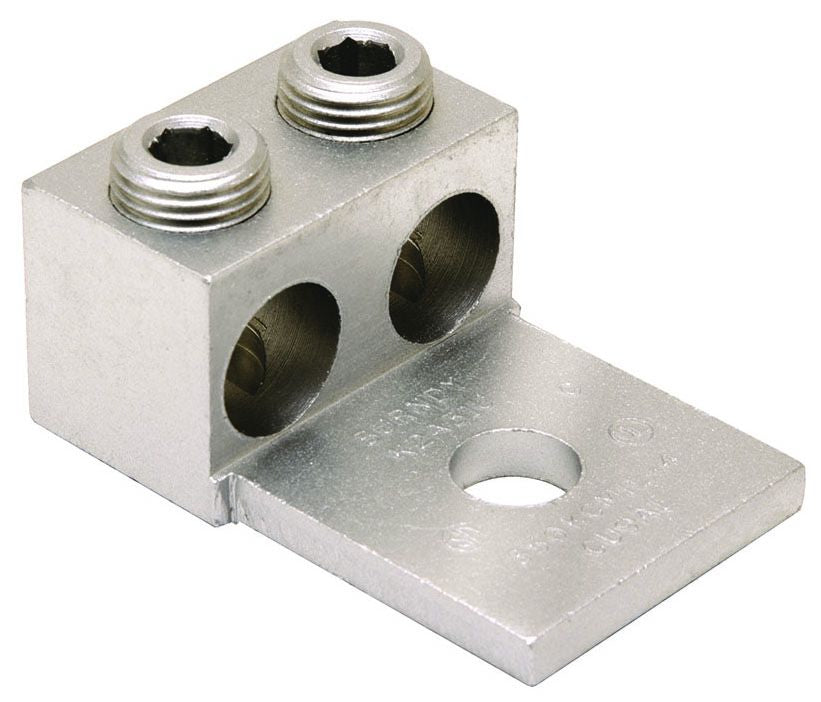

Burndy K2A29U Mechanical Cable Terminal Lug
Regular price
$14.39
Couldn't load pickup availability
These Dual-Rated Two-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 2
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 250 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 1

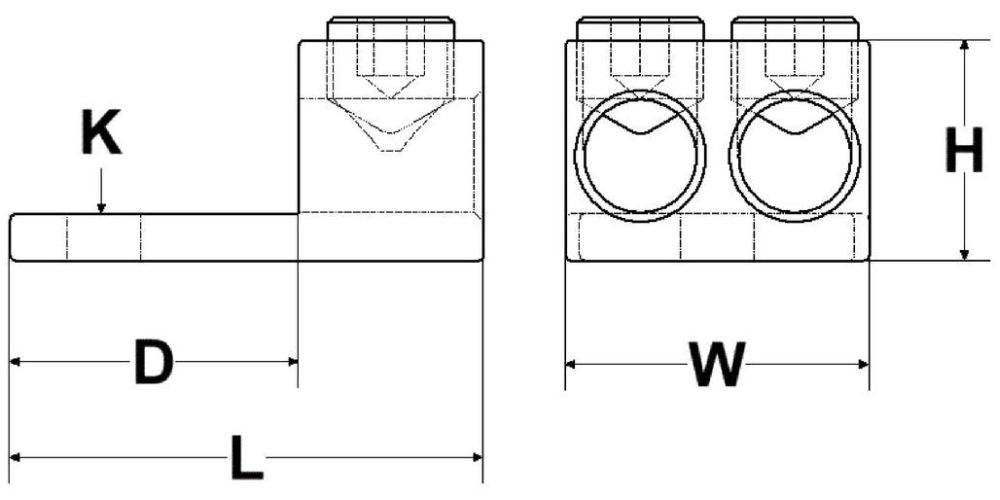

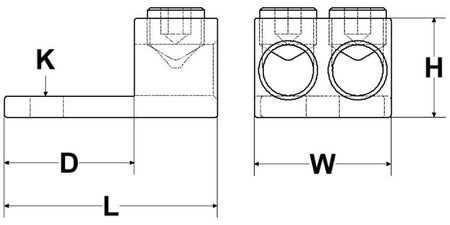

Pad Size: 1.5 Inch Length x 1.66 Inch Width x 0.25 Inch Thickness
Stud Size: 3/8 Inch
Overall Length: 2.56 Inch
Approval: UL 468A/B, CSA
