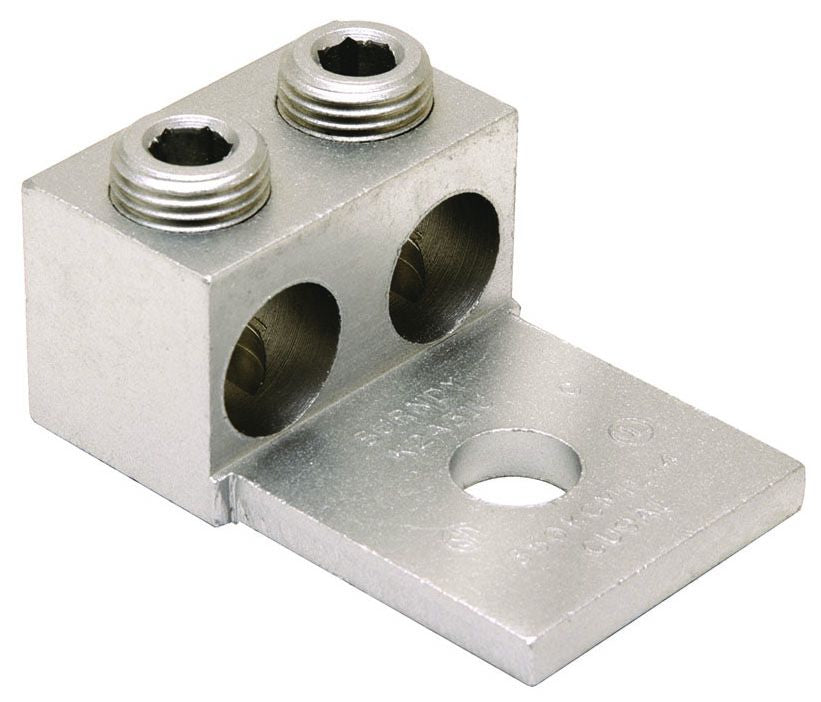

Burndy K2A36U Mechanical Cable Terminal Lug
Regular price
$29.58
Couldn't load pickup availability
These Dual-Rated Two-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors; RoHS Compliant
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 2
Minimum Conductor Size: 2 AWG Stranded
Maximum Conductor Size: 600 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 1

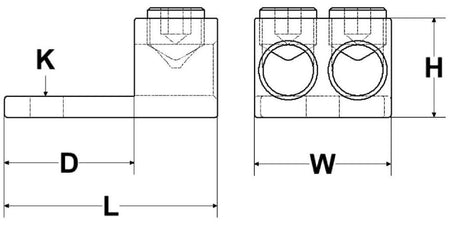

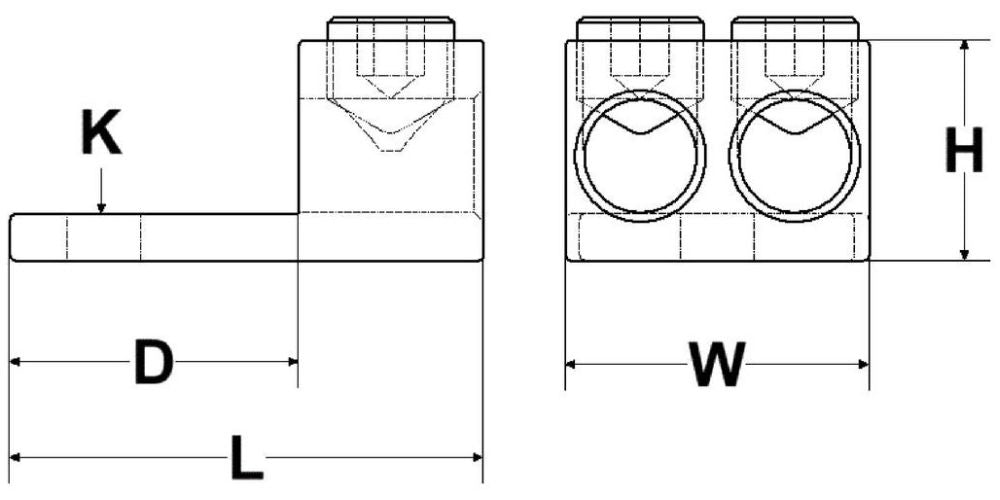

Pad Size: 1.75 Inch Length x 2.41 Inch Width x 0.44 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 3.2 Inch
Approval: UL 468A/B, CSA
