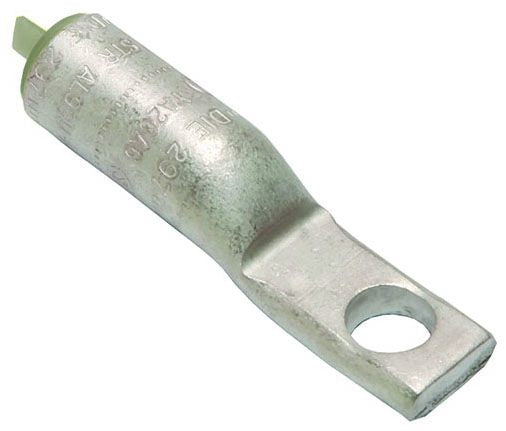

Burndy YA1CA1 Compression Cable Lug
Regular price
$7.80
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 1 AWG Aluminum (Code), 1 AWG Stranded Copper (Code)
Barrel Type: Standard, Straight
Barrel Length: 0.91 Inch
Pad Size: 0.76 Inch W x 0.19 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Gold
Die Index: 471
Material: Electro-Tin Plated Aluminum
Overall Length: 2.59 Inch
Approval: UL 468A/B, CSA
