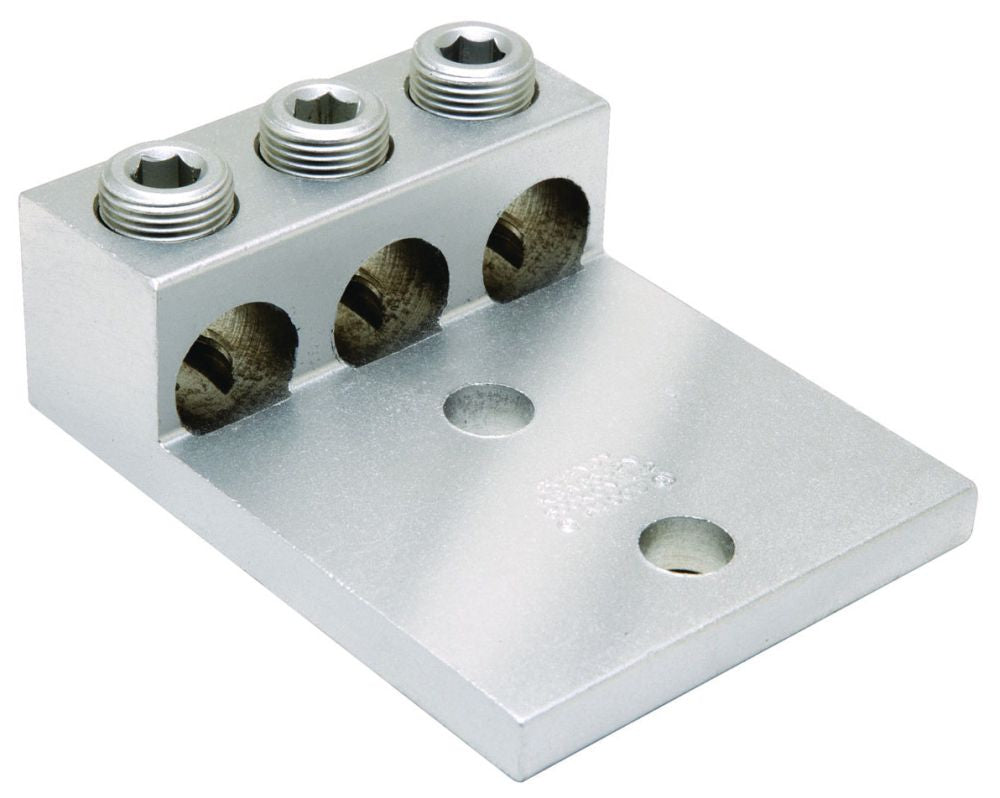

Burndy K3A29U2N Mechanical Cable Terminal Lug

In stock - 9 items available
SKU: 92148
Regular price $59.70
OR

Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors

Specifications:

Number of Conductors: 3
Minimum Conductor Size: 6 AWG Stranded Aluminum/Copper
Maximum Conductor Size: 250 KCMIL Aluminum, 250 KCMIL Stranded Copper
Conductor Material: Aluminum/Copper
Material: Electro Tin Plated Aluminum Alloy
Number of Pad Holes: 2 NEMA

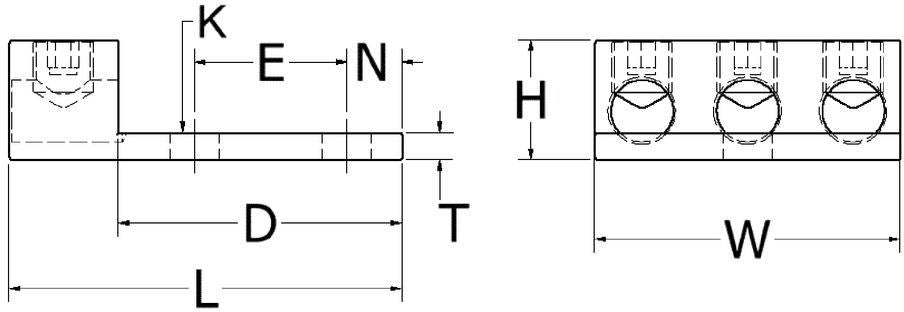

Pad Size: 3.16 Inch L x 3.01 Inch W x 0.31 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 4 Inch
Approval: UL 468A/486B, CSA
