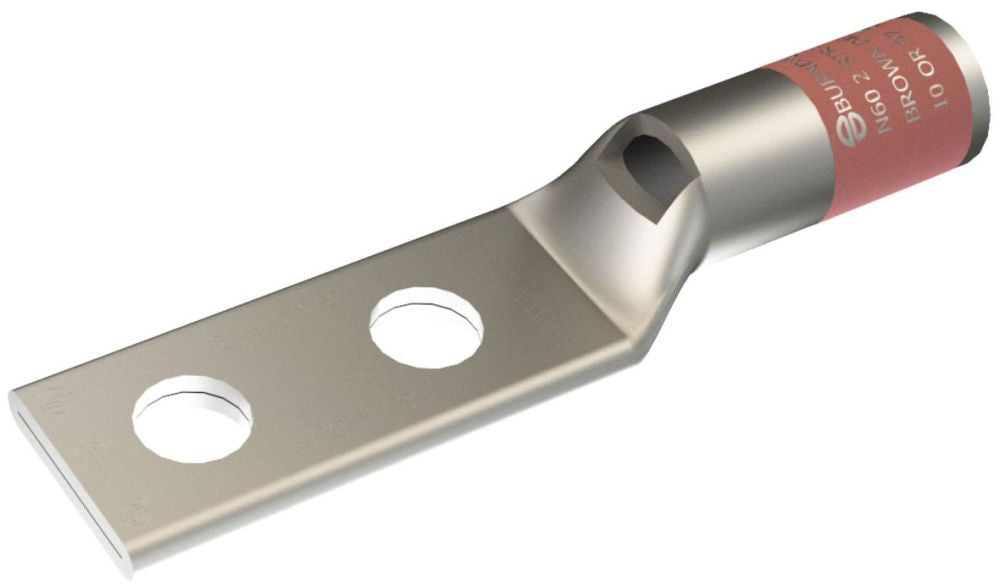

Burndy YA2C2LN Compression Terminal

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG Stranded (Code), 60 (Navy)
Barrel Type: Standard, Straight
Barrel Length: 0.88 Inch
Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Brown
Die Index: 10
Material: Electro Tin Plated Copper
Overall Length: 4.27 Inch
Approval: UL, CSA
