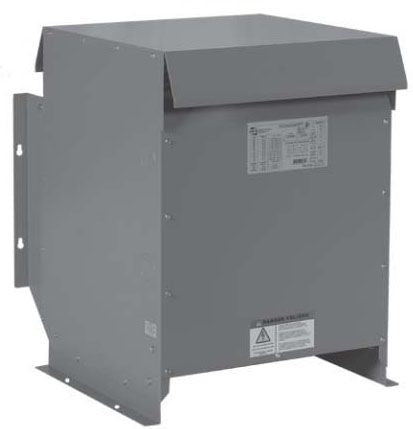

Hammond Power Solutions NMK030KB Energy Efficient Distribution Transformer

Energy Efficient General Purpose Transformers are Designed for Linear Loads and are Most Frequently Used for Applications Such as Commercial Buildings to Supply a Variety of General Loads; Heavy Duty Ventilated Type 3R Optional Type 4, 4X (Stainless Steel) and 12; Front Accessible Separate High and Low Voltage Terminals; Connectors Suitable for Aluminum are Provided for Easy Cable Installation; Conduit Knock-Outs Standard on All Units (No Knock-Outs on Stainless Steel Enclosures)

Specifications:

Type Designation: NH6
Construction: Ventilated
Primary Voltage: 480 Volt AC Delta
Secondary Voltage: 208 Volt Star/120 Volt AC
Frequency Rating: 60 Hertz
Power Rating: 30 Kilovolt Amp
Number of Phases: 3
Winding Type: Aluminum
Temperature Rise: 150 Deg C
Enclosure: NEMA 3R
Size: 23.9 Inch Width x 25 Inch Depth x 28.75 Inch Height
Mounting: Floor/Wall
Application: Linear Load, Commercial Building, Supplying Appliance, Lighting, Heating, Motorized Machine and Power Load from Electrical Distribution System
Weight: 280 Pound
Approval: UL, CSA C802.2
