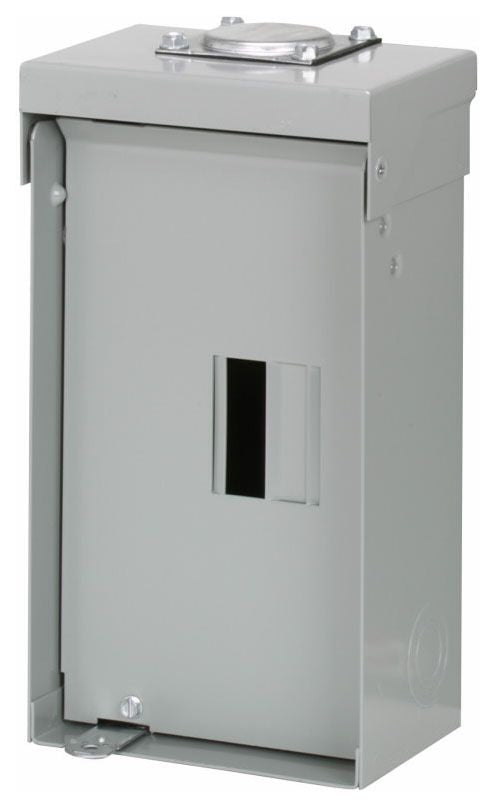

Eaton designs and manufactures loadcenters and circuit breakers that provide reliable power breaking and circuit protection.

Specifications:

Type: Main Lug
Voltage Rating: 120/240 VAC
Current Rating: 125 Ampere
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 4
Maximum Number of Spaces: (2) 1 Inch
Main Breaker Type: BR
Interrupting Rating: 10 Kiloampere
Neutral Type: Insulated/Bondable Split
Bus Material: Tin Plated Aluminum
Feed Location: Top/Bottom
Main Wire Size: 14 to 1/0 AWG (Aluminum/Copper)
Enclosure Type: NEMA 3R, Outdoor, Rainproof
Enclosure Size Designation: 6R
Size: 6-1/2 Inch W x 4-1/2 Inch D x 11-3/4 Inch H
Approval: UL
