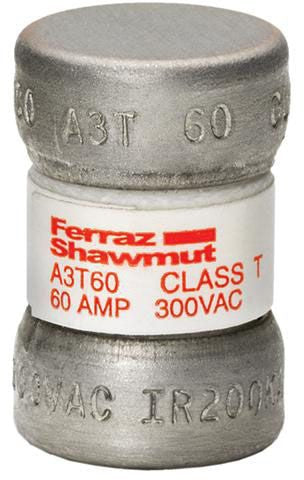

Fast-acting A3T Class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Specifications:

Type: Class T
Characteristics: Fast Acting
Voltage Rating: 300 Volt AC, 160 Volt DC
Current Rating: 60 Amp
Interrupting Rating: 200 Kiloamp (AC), 50 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.56 Inch
Length: 0.88 Inch
Approval: UL 248/248-15, CSA C22.2
