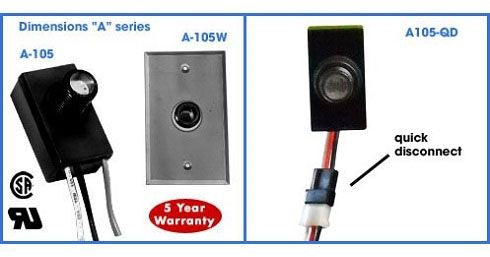

Precision Multiple Controls A105 Photocontrol

Button Style Photocell with Quick Disconnect; Easy to Install; No Re-Wiring or Electrician Required; Ideal for Wall Pack, Post Lamp or Power Pedestal Applications; The Body or Housing of All "A" Style Models Must be Mounted in a Weatherproof Enclosure to Assure Protection from Water Damage; Only the Threaded Portion is Weatherproof

Specifications:

Type: Broad Surface Sensing Element, Wire-In, Button Style
Voltage Rating: 120 Volt AC
Ballast Load Rating: 1100 Volt Amp
Turn ON Light Level: 1 to 3 Foot-Candle
Switch Type: SPST-NC
Terminal Type: 9 Inch Wire Lead
Temperature Rating: -30 to 140 Deg F
Mounting: 3/8 Inch-18 Threaded Stem, Weatherproof Enclosure
Enclosure Material: Durable High Impact Lexan
Size: 1-1/4 Inch Width x 3/4 Inch Depth x 2 Inch Height (1-1/2 Inch Deep Including Threaded Stem)
Application: Wall Pack, Post Lamp or Power Pedestal
Approval: UL (Canada and US)
