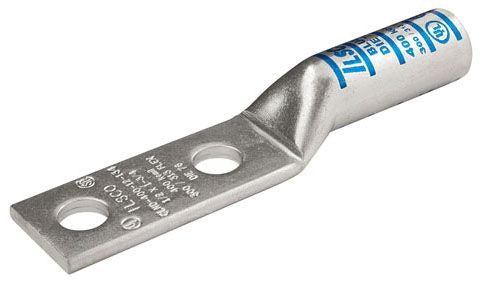

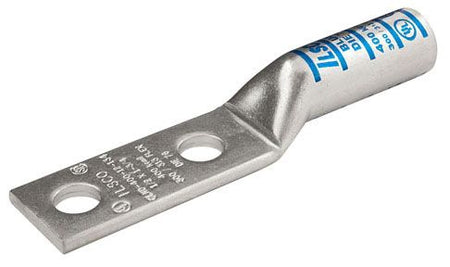

Ilsco CLND-500-12-134 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing; Electro-Tin Plated; Chamfered Entry; Color Coded; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; UL Listed and CSA Certified with Ilsco and Major Competitors Compression Tools; Rated to 90 Deg C; Offers Maximum Conductivity and Excellent Crimping Characteristics; Provides Low Contact Resistance; for Easy Conductor Insertion; Identifies the Proper Compression Die; Reduces Inventory Requirements; For Grounding and Bonding Applications; Versatility; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 500 KCMIL
Barrel Type: Long, Straight
Barrel Length: 2.25 Inch
Pad Size: 3 Inch Length x 1.535 Inch Width x 0.234 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Brown
Die Index: I-87
Material: Electro Tin Plated High Strength Seamless Copper
Overall Length: 5.982 Inch
Approval: UL 453G/467/486A/B, CSA
