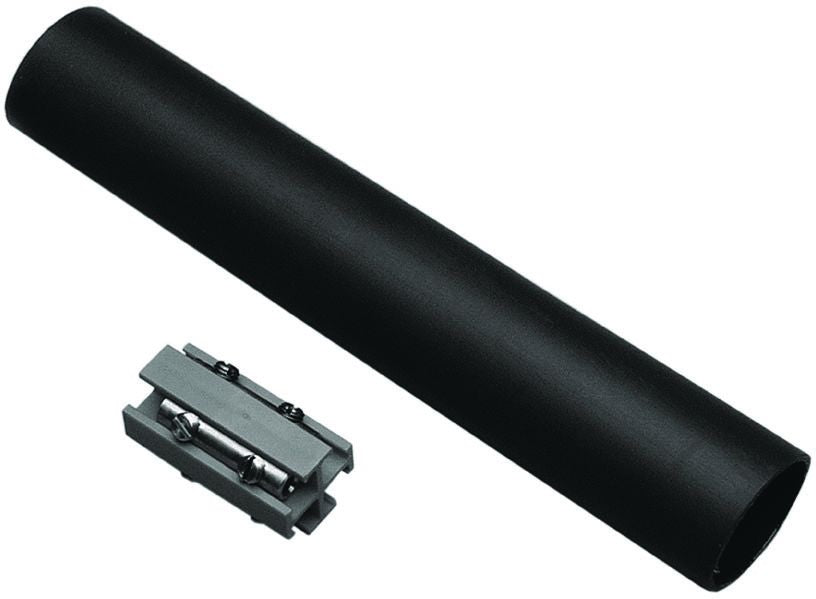

Burndy UGSKIT2 Underground Splice Kit

The AMS Splice is Dual Rated for Use with Aluminum and Copper Conductors and are Constructed from High Strength Tin Plated Aluminum that Provides Low Contact Resistance and Reduces the Effects of Galvanic Corrosion; Connector Installed with Common Installation Tools; Both Heavy Wall Heat Shrink Sleeves are Lined with Adhesive Material, Providing a Watertight Splice that Can withstand Abrasions that May Occur During Direct Burial Applications; Heat Shrink Sleeve Installed with Standard Propane Torch or Electric Heat Gun; RoHS Compliant

Specifications:

Type: Direct Burial
Conductor Material: Aluminum
Minimum Wire Combination Size: 8 AWG
Maximum Wire Combination Size: 2 AWG
Connector Included: Yes

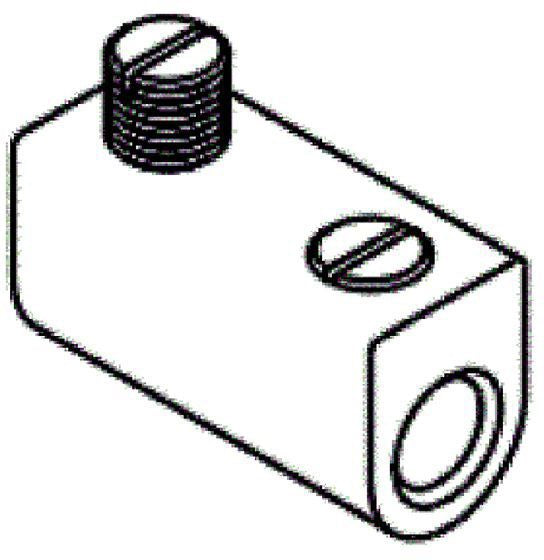

Contents: AMS Splice/Reducer (2) Heavy Wall Heat Shrink Sleeve
Standard Package: 1
Approval: UL 486D, CSA
