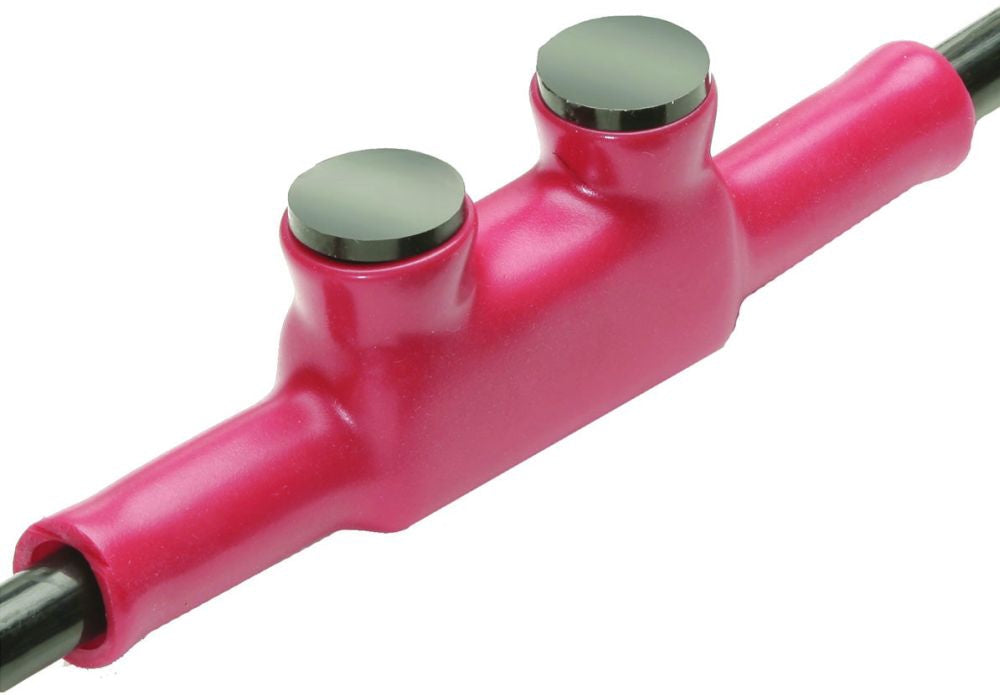

Burndy BISR4DB Mechanical Cable Splice
Regular price
$28.91
Couldn't load pickup availability
Designed specifically for direct burial applications, the MOLE in-line splice/reducer is made with a specialized plastisol material that forms a rugged weathertight connection.
Specifications:
Type: In-Line
Voltage Rating: 600 V
Minimum Conductor Size: 6 AWG (Aluminum), 6 AWG Stranded (Copper)
Maximum Conductor Size: 4 AWG (Aluminum), 4 AWG Stranded (Copper)
Conductor Material: Aluminum/Copper
Number of Screws: 2
Screw Size: 1/4 Inch Dia
Hex Size: 1/8 Inch

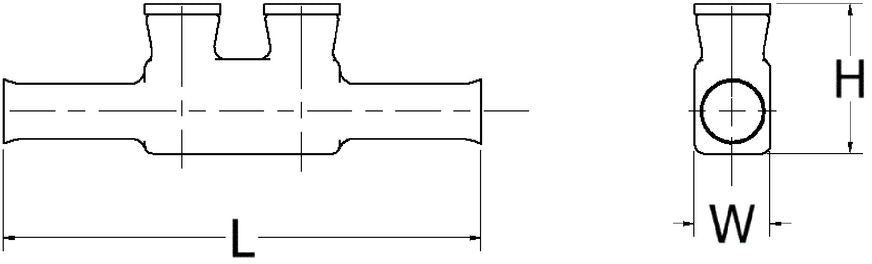

Size: 4.3 Inch L x 0.68 Inch W x 1.39 Inch H
Body Material: 6061-T6 Aluminum
Insulation Type: Plastisol
Approval: UL, CSA
