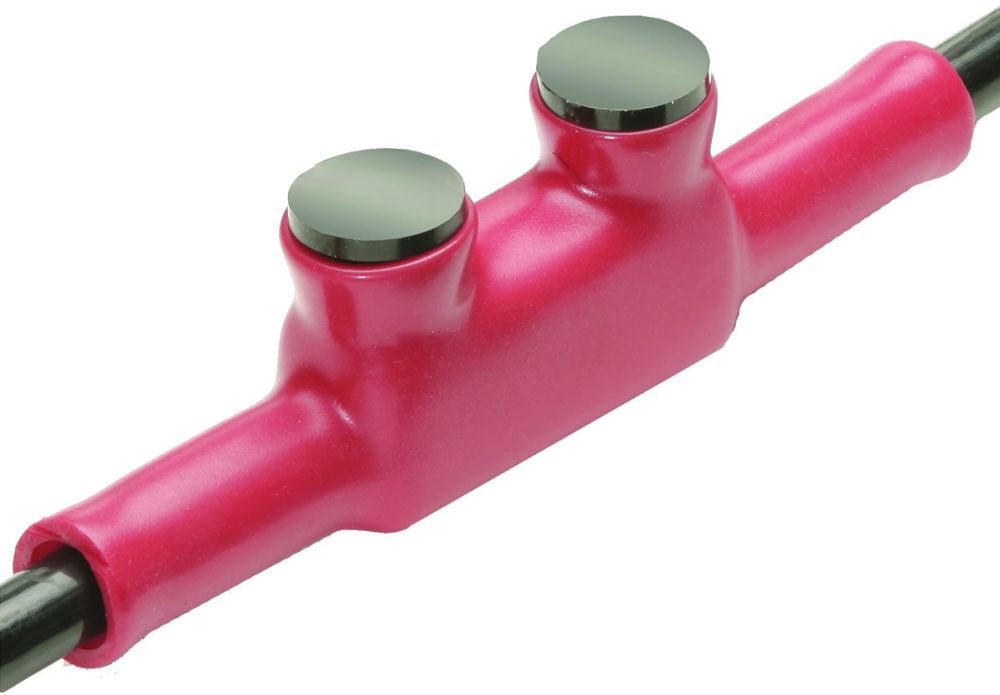

Burndy BISR1DB Mechanical Cable Splice
Regular price
$34.21
Couldn't load pickup availability
Designed specifically for direct burial applications, the MOLE in-line splice/reducer is made with a specialized plastisol material that forms a rugged weathertight connection.
Specifications:
Type: In-Line
Voltage Rating: 600 V
Minimum Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Maximum Conductor Size: 1 AWG (Aluminum), 1 AWG Stranded (Copper)
Conductor Material: Aluminum/Copper
Number of Screws: 2
Screw Size: 5/16 Inch Dia
Hex Size: 5/32 Inch

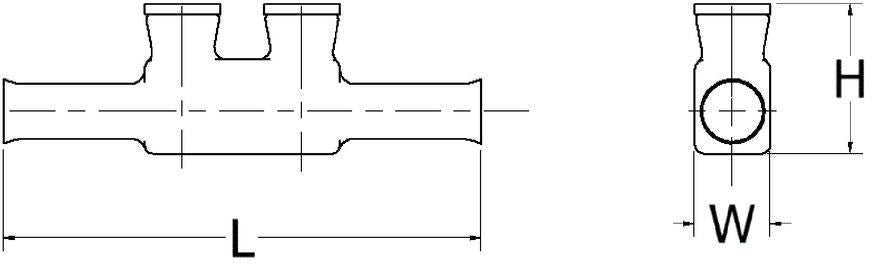

Size: 6.3 Inch L x 0.88 Inch W x 1.75 Inch H
Body Material: 6061-T6 Aluminum
Insulation Type: Plastisol
Approval: UL, CSA
