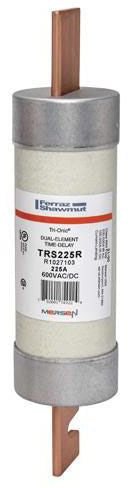

With advanced material technology added to the existing product, the Tri-Onic TRS current-limiting time-delay fuses are engineered for over current protection of motors and transformers, service entrance equipment, feeder and branch circuits. Tri-Onic fuse's proven time-delay characteristic safely handles harmless starting currents and inrush currents associated with today's motors and transformers. Now available with optional SmartSpot blown fuse indication technology.

Specifications:

Type: Class RK5
Characteristics: Time Delay
Voltage Rating: 600 Volt AC/DC
Current Rating: 225 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Blade
Diameter: 2-9/16 Inch
Length: 11-5/8 Inch
Approval: UL 248-12, CSA C22.2
