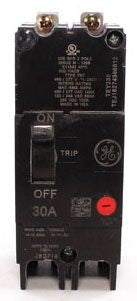

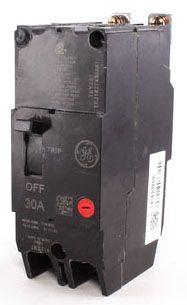

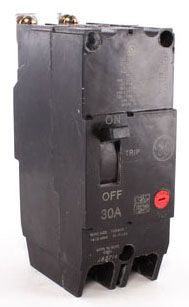

The Tey is a One-Inch Wide Per Pole, Compact, "Bolt-On" Circuit Breaker; For Use on Grounded 480Y/277 Vac Systems; The Bolt-On Mounting Base Accessory Makes the Tey Suitable for Varied Applications as a Lug-Lug Breaker; All Tey Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: TEY
Voltage Rating: 480 Star/277 Volt AC
Maximum AC Voltage Rating: 480 Star/277 Volt
Maximum DC Voltage Rating: 250 Volt
Current Rating: 30 Amp
Number of Poles: 2
Interrupting Rating: 65 Kiloamp at 240 Volt AC, 14 Kiloamp at 277 Volt AC, 14 Kiloamp at 480 Star/277 Volt AC, 10 Kiloamp at 250 Volt DC
Terminal Type: Copper/Aluminum Load Lug, Bolt-On
Size: 2 Inch Width x 3-1/16 Inch Depth x 5-1/4 Inch Height
Approval: UL, CUL
