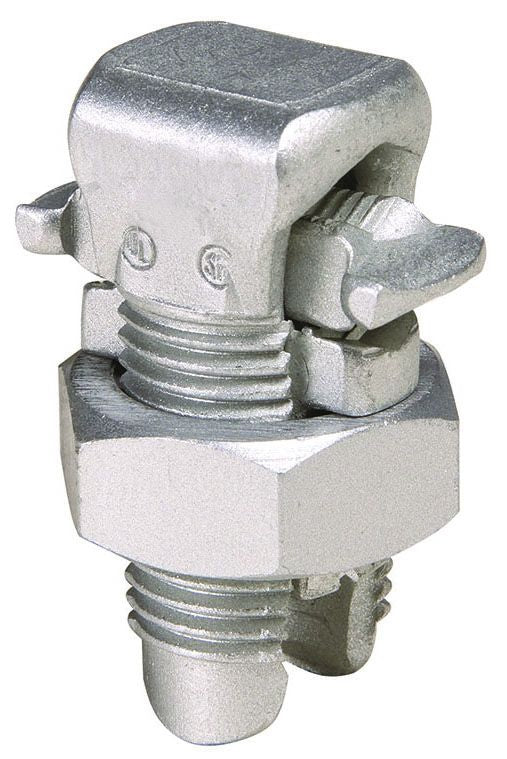

Burndy KSA1/0 Split Bolt Connector

Used indoors or outdoors this compact, one-piece plastic SERVIT cover, saves time and material, eliminates costly taping of split-bolts. Positive latch snaps easily and quickly over connector, ideal for tight quarters. Self positioning plastic fingers wrap around wires fully insulating joint. UL Listed for 600 volt indoor application. Three covers accommodate a range of 6 SERVIT sizes through 2/0 Stranded.

Specifications:

Installation: Split Bolt
Conductor Material: Aluminum/Copper
Minimum Run Conductor Size: 2 AWG (Aluminum), 2 AWG Stranded (Copper)
Maximum Run Conductor Size: 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper)
Minimum Tap Conductor Size: 8 AWG (Aluminum/Copper/Solid)
Maximum Tap Conductor Size: 1/0 AWG (Aluminum/Copper/Solid)
Material: Tin Plated Aluminum Alloy
Approval: UL 486B, CSA
