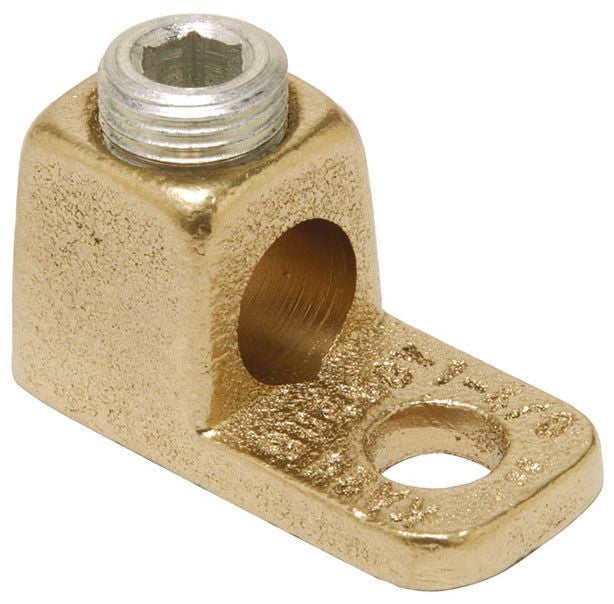

Burndy KA25 Mechanical Cable Terminal Lug
Regular price
$14.20
Couldn't load pickup availability
Compact, Economical, High Copper Alloy Terminal for Joining a Wide Range of Cable to Equipment Pads or Terminal Blocks; For Copper Cable; RoHS Compliant
Specifications:
Type: Socket Set Screw
Number of Conductors: 1
Minimum Conductor Size: 4 AWG Stranded
Maximum Conductor Size: 1/0 AWG Stranded
Conductor Material: Copper
Pad Type: Equipment
Screw Type: 1/2 Inch Allen Head
Material: High Copper Alloy
Number of Pad Holes: 1

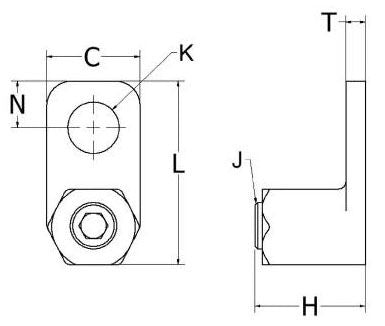

Pad Size: 3/4 Inch Width x 1/8 Inch Thickness
Stud Size: 3/8 Inch
Overall Length: 1-11/16 Inch
Approval: UL 468A/B
