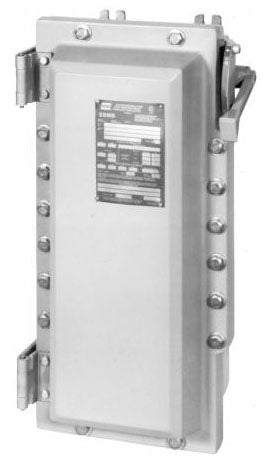

Crouse-Hinds EBMBB-FD-W30361 Explosionproof Disconnect Switch

Rugged, Corrosion Resistant, Cast Copper-Free Aluminum Construction; Accepts Compatible Arktite Plug of Same Rating and Configuration; Mechanical Interlock Mechanism for Dead Front Construction; Receptacles are Mechanically Interlocked with Circuit Breakers to Provide Disconnect Means, Short Circuit Protection and Thermal Time Delay Overload Protection; A Spring Door Receptacle, Located at the Bottom of the Unit, is Mechanically Interlocked with the Circuit Breaker Operating Mechanism for Safe and Dependable Operation; Plug and Receptacle Contacts Cannot be Made or Broken Under Load; The Circuit Breaker Cannot be Closed Until the Plug is Fully Inserted and the Plug Cannot be Withdrawn Unless the Breaker is De-Energized; Simple, Straightforward Installation of Breaker on Pre-Drilled Mounting Plate Within Enclosure; Bodies have Top Drilled and Tapped Entrance for Power Conduit Plus One at the Top and One at the Bottom for a Breather and Drain; Breather and Drain Entrances are Plugged

Specifications:

Constructional Feature: Dust-Ignitionproof, Explosionproof, Watertight, Wet Location
Voltage Rating: 440/480/550/600 VAC, 250 VDC
Current Rating: 30 Ampere
Power Rating: 5 HP at 440/480 VAC, 7-1/2 HP at 550/600 VAC, 5 HP at 250 VDC
Fuse Provision: Fusible
Operator Type: Handle
Cover Type: Hinged
Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/3R/7B/7C/7D/9E/9F/9G/12
Enclosure Material: Rugged Cast Copper Free Aluminum
Mounting: Feet
Size: 14.46 Inch W x 10.25 Inch D x 26.9 Inch H
Approval: UL 1203, CSA C22.2
