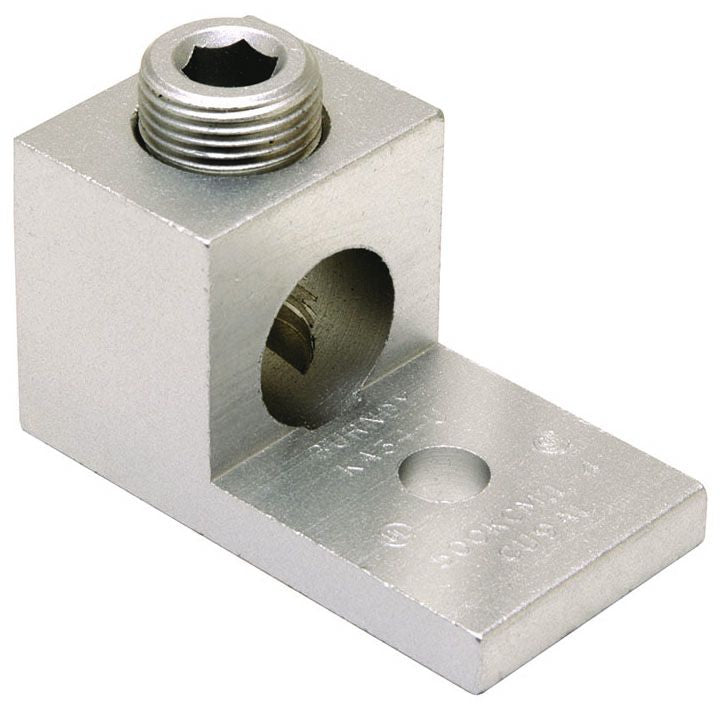

Burndy KA29U Mechanical Cable Terminal Lug
Regular price
$5.46
Couldn't load pickup availability
These Dual Rated 1-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; RoHS Compliant
Specifications:
Type: Universal
Number of Conductors: 1
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 250 KCMIL Stranded
Conductor Material: Copper/Aluminum
Screw Type: Allen Head Bolt
Material: Electro-Tin Plated Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 0.94 Inch Length x 1.02 Inch Width x 0.25 Inch Thickness
Stud Size: 5/16 Inch
Overall Length: 2 Inch
Approval: UL 468A/B, CSA
