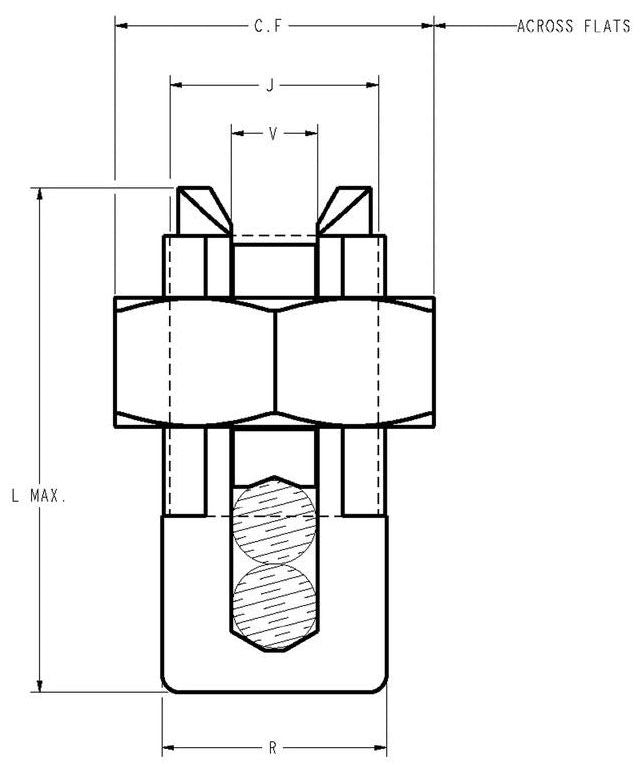

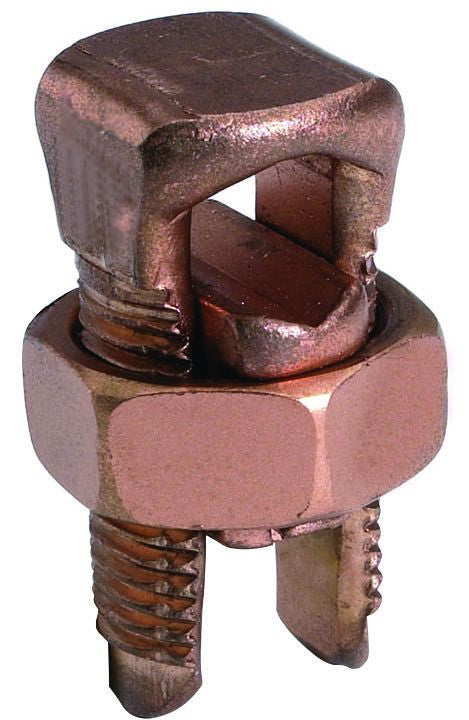

Burndy KS17 Split Bolt Connector

Compact, High Strength, High Copper Alloy Servit Split-Bolt has Free-Running Threads and Easy to Grip Wrench Flats; Highly Resistant to Season Cracking and Corrosion

Specifications:

Installation: Split Bolt
Conductor Material: Copper/Copperweld
Minimum Run Conductor Size: 8 AWG Stranded (Copper)
Maximum Run Conductor Size: 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld)
Minimum Tap Conductor Size: 14 AWG Stranded (Copper)
Maximum Tap Conductor Size: 6 AWG Solid (Copper), 6 AWG Solid, (3) 12 AWG Stranded (Copperweld), 8 AWG Type A (Copperweld), 9-1/2 AWG Type D (Copperweld)
Material: High Copper Alloy
Approval: UL, CSA
