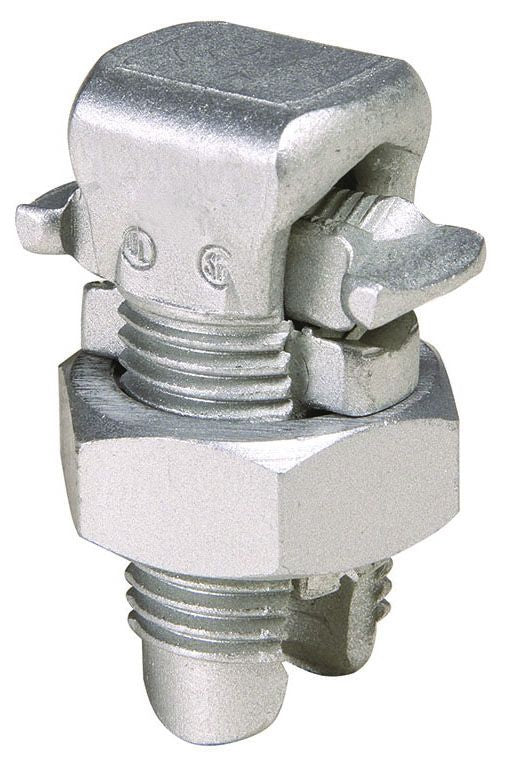

Burndy KSA4/0 Split Bolt Connector

No Scratch Brushing Required; No Oxide Inhibitor Required; Orients the Conductor; Provides Maximum Pressure and Assures a Secure Connection of Run and Tap Conductors; Facilitates Piercing the Aluminum Conductor Surface Oxides; Provides a Low Contact Resistance; Provides Equal Coefficient of Expansion; Inhibits the Reformation of Oxides by Producing a Gas-Tight Seal; Provides Improved Retention of Minimum to Maximum Conductor Combinations

Specifications:

Installation: Split Bolt
Conductor Material: Copper/Aluminum
Minimum Run Conductor Size: 6 AWG Stranded
Maximum Run Conductor Size: 4/0 AWG Stranded
Minimum Tap Conductor Size: 6 AWG Stranded
Maximum Tap Conductor Size: 4/0 AWG Stranded
Material: Tin Plated Aluminum Alloy
Approval: UL 486B, CSA
