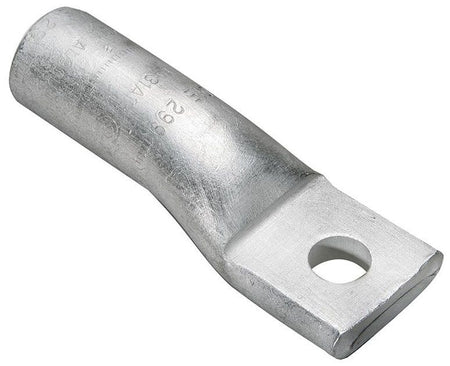

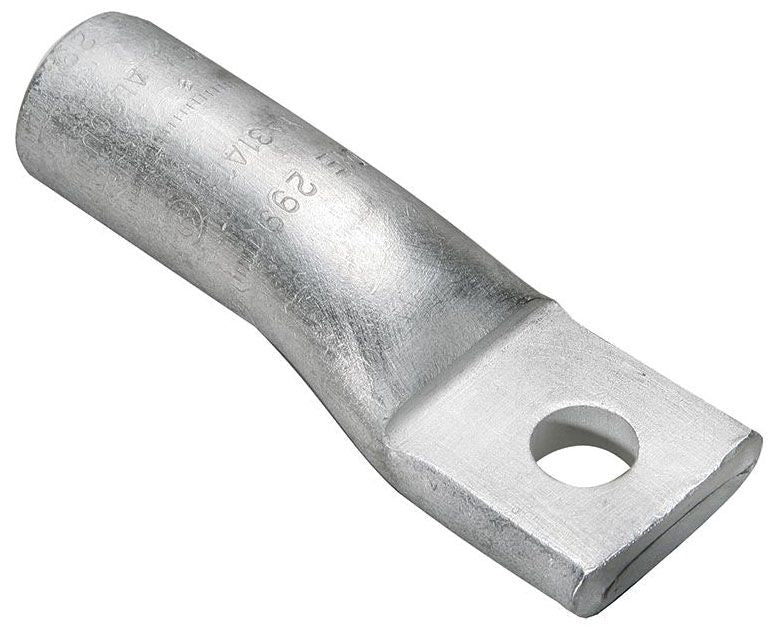

Burndy YA34A1 Compression Cable Lug
Regular price
$39.20
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 500 KCMIL (Aluminum), 500 KCMIL Stranded (Copper), 350 KCMIL (CCA DLO)
Barrel Type: Closed, Straight, Non-Insulated
Barrel Length: 2.34 Inch
Pad Size: 1.91 Inch Length x 1.8 Inch Width x 0.46 Inch Thickness
Number of Pad Holes: 1
Stud Size: 5/8 Inch
Color: Pink
Die Index: 300
Material: Electro Tin Plated Aluminum
Overall Length: 5.56 Inch
Approval: UL, CSA
