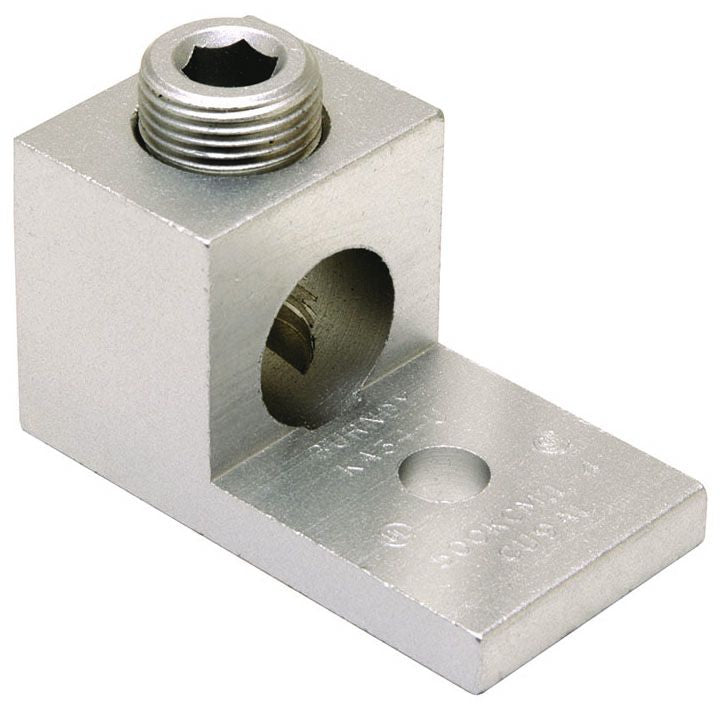

Burndy KA26U Mechanical Cable Terminal Lug
Regular price
$2.60
Couldn't load pickup availability
These Dual Rated 1-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors; RoHS Compliant
Specifications:
Type: Universal
Number of Conductors: 1
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 2/0 AWG Stranded
Conductor Material: Copper/Aluminum
Screw Type: Allen Head Bolt
Material: Electro-Tin Plated Aluminum Alloy
Number of Pad Holes: 1

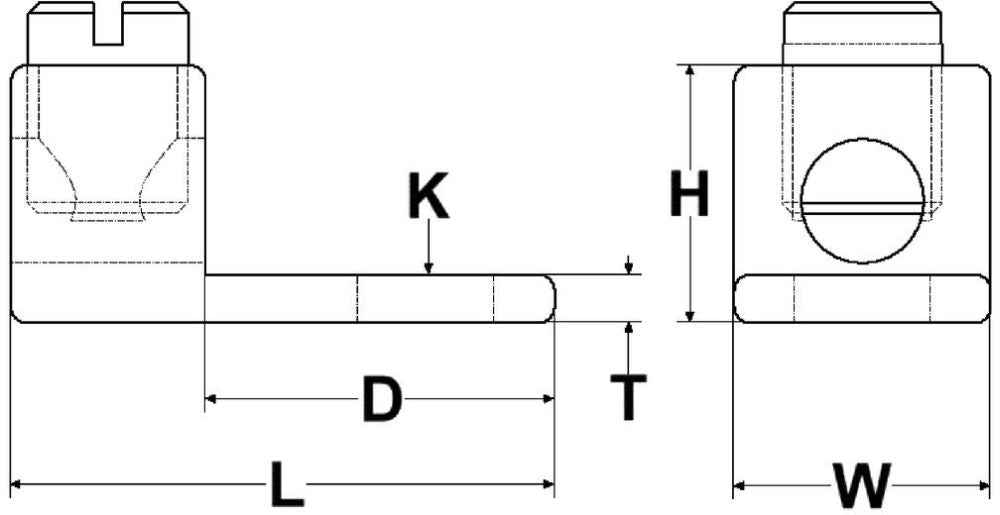

Pad Size: 0.81 Inch Length x 0.64 Inch Width x 0.19 Inch Thickness
Stud Size: 1/4 Inch
Overall Length: 1.47 Inch
Approval: UL 468A/B, CSA
