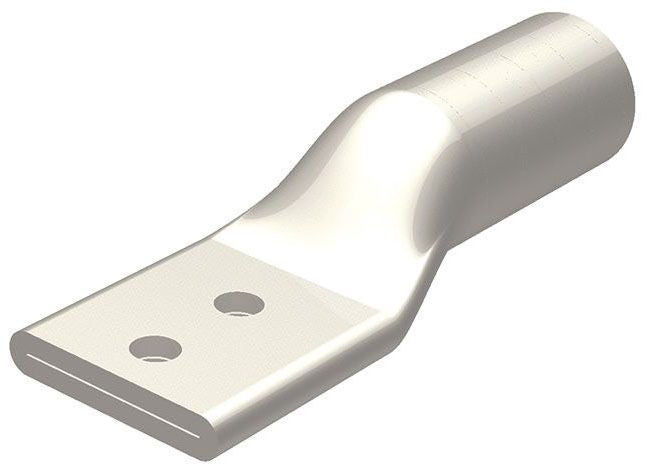

Burndy YA34A3 Compression Cable Lug

Type YA-A terminals in 2- and 4-hole designs inhibit connector rotation and increase area contact. These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads. They are dual-rated for use on both aluminum and copper conductors.

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 500 KCMIL (Aluminum), 500 KCMIL Stranded (Copper), 350 KCMIL (CCA DLO)
Barrel Type: Closed, Straight, Non-Insulated
Barrel Length: 2.34 Inch
Pad Size: 3.15 Inch Length x 1.62 Inch Width x 0.46 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Pink
Die Index: 300
Material: Electro Tin Plated Aluminum
Overall Length: 6.8 Inch
Approval: UL, CSA
