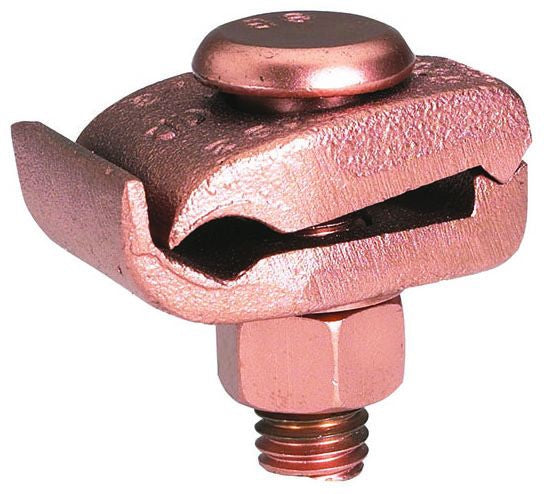

Burndy GB29 Grounding Connector
Regular price
$82.94
Couldn't load pickup availability
High Copper Alloy Ground Connector for Joining a Range of Cable to 1/4 Inch Thick Bar; Type GB Separates Cable from Bar, GBM Clamps Cable Directly on Bar Surface; 1-Wrench Installation; The High Copper Alloy Cast Body and Durium Bolts, Nuts, Lock Washer Make the GB and GBM Suitable for Direct Burial in Concrete or Ground; For Copper Cable to Bar; RoHS Compliant
Specifications:
Conductor Size: 2/0 AWG to 250 KCMIL
Bolt Size: 1/2 Inch
Bar Thickness: 1/4 Inch
Height: 2 Inch
Material: Cast Copper Alloy (Body), Durium (Bolt/Nut/Lockwasher)
Approval: UL 467, CSA
Used On: Cable to Bar, Direct Burial
