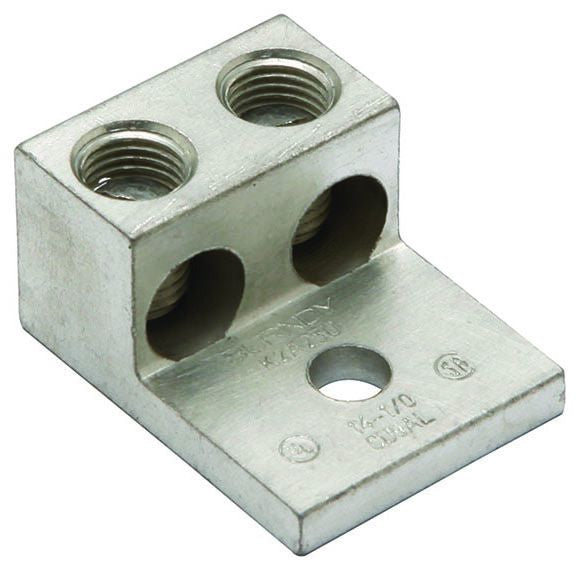

Burndy K2A25U Mechanical Cable Terminal Lug
Regular price
$4.89
Couldn't load pickup availability
These Dual-Rated Two-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors; RoHS Compliant
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 2
Minimum Conductor Size: 14 AWG Stranded
Maximum Conductor Size: 1/0 AWG Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 1

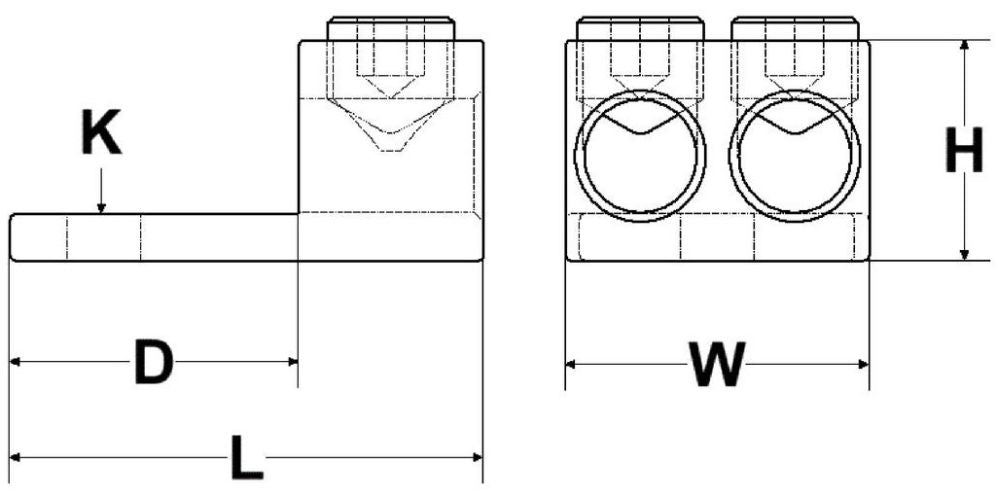

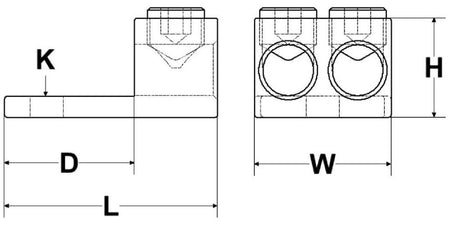

Pad Size: 0.81 Inch Length x 1.13 Inch Width x 0.19 Inch Thickness
Stud Size: 1/4 Inch
Overall Length: 1.47 Inch
Approval: UL 468A/B, CSA
