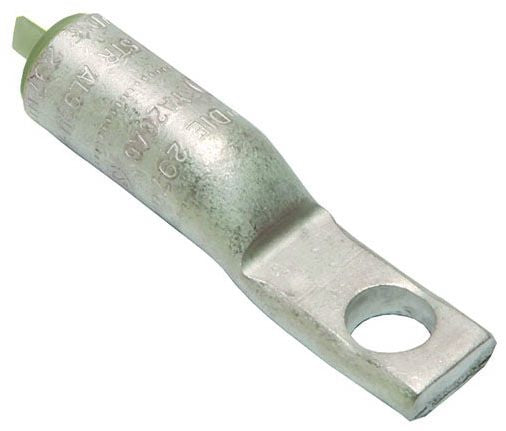

Burndy YA25A3 Compression Cable Lug
Regular price
$6.64
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 1/0 AWG Aluminum (Code), 1/0 AWG Stranded Copper (Code)
Barrel Type: Short, Standard, Straight
Barrel Length: 1.05 Inch
Pad Size: 0.82 Inch W x 0.21 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Tan
Die Index: 296
Material: Electro-Tin Plated Aluminum
Overall Length: 2.67 Inch
Approval: UL 468A/B, CSA
