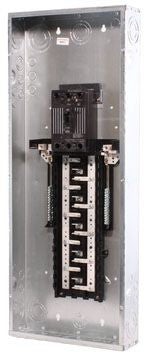

1-Piece Interior Removes and Reinstalls Easily; Main Breaker Configuration Allows Top or Bottom Feed without Modification; Full-Length Neutrals are Easier to Wire Reducing Installation Time and Cost; Combination Slotted/Robertson Square-Drive Speeds Screw Wiring; Minimum 100% Neutral Terminations; 100% Rated Split Neutral on Each Side; Sturdy Copper Bus and Galvanized Box Increase Durability and Reliability; Tie Bar May be Removed to Split Neutral/Ground; 0/75 Deg C Conductor Rating; Suitable for Use as Service Entrance Equipment When Installed in Accordance with the National Electrical Code; 22 KAIC RMS Symmetrical, Except Where Noted; 6-42 Circuit Devices UL Listed for Bottom Mounted Lugs by Installing Complete Unit (Box, Interior and Front) Upside Down

Specifications:

Type: Main Breaker
Voltage Rating: 208 Star/120 Volt AC
Current Rating: 200 Amp
Circuit Configuration: 3-Phase 4-Wire
Maximum Number of Circuits: 30
Maximum Number of Spaces: (30) 1-Pole 1 Inch/(14) 2-Pole 1 Inch/(10) 3-Pole 1 Inch
Interrupting Rating: 22 Kiloamp
Feed Location: Top
Main Wire Size: 1 AWG to 250 KCMIL (Copper), 2/0 AWG to 250 KCMIL (Aluminum)
Enclosure Type: NEMA 1, Indoor

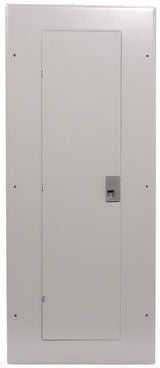

Cover Type: Flush/Surface
Enclosure Size Designation: 12
Size: 14 Inch Width x 3-3/4 Inch Depth x 35-7/16 Inch Height
Approval: UL
