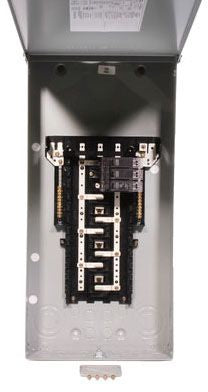

1-Piece Interior Removes and Reinstalls Easily; Full-Length Neutrals are Easier to Wire Reducing Installation Time and Cost; Minimum 100% Neutral Terminations; Sturdy Copper Bus and Galvanized Box Increase Durability and Reliability; Main Breaker Configuration Allows Top or Bottom Feed without Modification; Combination Slotted/Robertson Square-Drive Speeds Screw Wiring; 100% Rated Split Neutral on Each Side; Tie Bar May be Removed to Split Neutral/Ground

Specifications:

Type: Main Breaker
Voltage Rating: 208 VAC Star/120 VAC
Current Rating: 100 Ampere
Circuit Configuration: 3-Phase 4-Wire
Maximum Number of Circuits: 18
Maximum Number of Spaces: (18) 1-Pole 1 Inch THQL/(8) 2-Pole 1 Inch THQL/(6) 3-Pole 1 Inch THQL
Main Breaker Type: THQL
Breaker Mounting: Plug-In
Interrupting Rating: 22 Kiloampere
Neutral Type: Split
Feed Location: Top
Main Wire Size: 6 to 1/0 AWG (Copper), 4 to 1/0 AWG (Aluminum)
Enclosure Type: NEMA 3R, Outdoor
Enclosure Size Designation: R4
Size: 12-1/2 Inch W x 4-5/8 Inch D x 26-7/16 Inch H
Approval: UL
