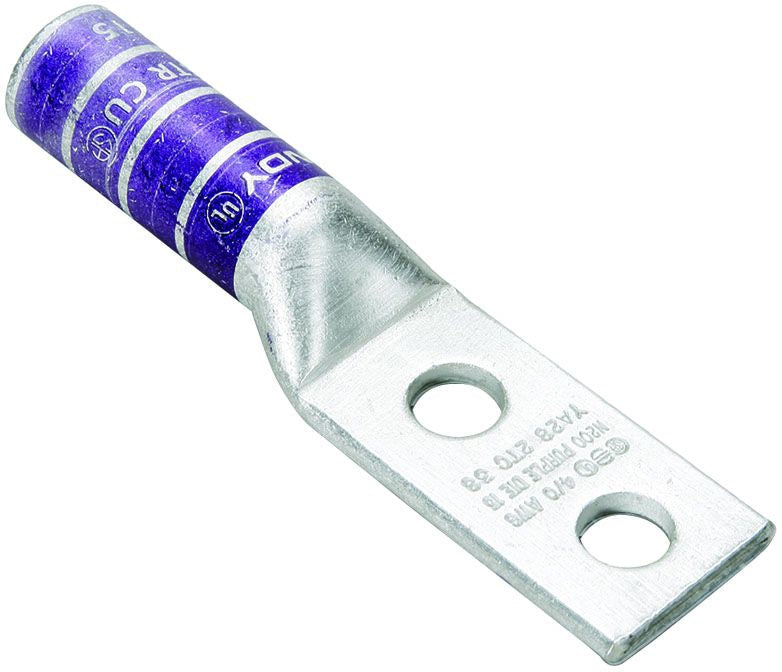

Burndy YA6C2 Compression Terminal

Burndy Compression Connectors are Designed for Reliable and Controllable Electrical Connections; The Complete Installation is Fully Inspectable; They are High Conductivity Copper and Operate Cooler than the Wire on Which They are Installed; The Connectors Withstand a Wide Range of Electrical and Environmental Conditions, Including Current Surges, Temperatures, Corrosion and Vibrations, for a Wide Variety of Applications; These Features Mean a Consistently High Quality Connection at a Low Installed Cost; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 6 AWG Stranded (Code)
Barrel Type: Long, Skived, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.41 Inch W x 0.09 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 0.62 Inch
Stud Size: 1/4 Inch
Color: Blue
Die Index: 15
Material: Electro-Tin Plated Copper
Overall Length: 2.5 Inch
Approval: UL, CSA
