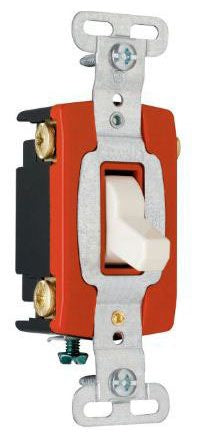

Pass & Seymour CSB20AC4LA Toggle Switch

Out of stock
SKU: 9750
Regular price $27.38
OR

One-Piece Brass Alloy Contact Arm for Reliable Electrical Performance; One-Piece Steel Strap with Integral Ground is Plated for Corrosion Resistance; High Strength Thermoplastic Polycarbonate Toggle Resists Breaking and Chipping Under Heavy Abuse; Heavy Duty Toggle Bumpers for Smooth and Quiet Operation; Back Body Made of Glass-Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Cam Designed for Fast Make with Positive Break Action to Minimize Arcing and Prolong Switch Life; Oversized Silver Alloy Contacts for Longer Dependable Switch Life; Tri-Drive Terminal and Mounting Screws

Specifications:

Type: Toggle
Current Rating: 20 Ampere
Voltage Rating: 120/277 VAC
Operation Type: 4-Way
Material: Thermoplastic Polycarbonate Toggle, Glass-Reinforced Nylon Back Body, Nylon Front Body, Nickel Plated Steel Mounting Strap
Color: Light Almond
Wiring: Back, Side
Size: 1.32 Inch W x 1.073 Inch D x 3.281 Inch H
Wall Plate Included: No
Application: Commercial
Approval: UL 20, FSUL WS896, CSA C22.2
